Industrial Burners

GIB

GIB-301
Capacity: Max MW: 3,2 Max kcal/h: 2.752.000
View
GIB-302
Capacity: Max MW: 4 Max kcal/h: 3.440.000
View
GIB-351
Capacity: Max MW: 4,8 Max kcal/h: 4.128.000
View
GIB-352
Capacity: Max MW: 5,9 Max kcal/h: 5.074.000
View
GIB-353
Capacity: Max MW: 7 Max kcal/h: 6.020.000
View
GIB-401
Capacity: Max MW: 7,8 Max kcal/h: 6.708.000
View
GIB-402
Capacity: Max MW: 8,5 Max kcal/h: 7.310.000
View
GIB-403
Capacity: Max MW: 9,3 Max kcal/h: 7.998.000
View
GIB-451
Capacity: Max MW: 11 Max kcal/h: 9.460.000
View
GIB-452
Capacity: Max MW: 12,4 Max kcal/h: 10.664.000
View
GIB-453
Capacity: Max MW: 13,9 Max kcal/h: 11.954.000
View
GIB-501
Capacity: Max MW: 15,5 Max kcal/h: 13.330.000
View
GIB-502
Capacity: Max MW: 17,1 Max kcal/h: 14.706.000
View
GIB-503
Capacity: Max MW: 18,6 Max kcal/h: 15.996.000
View
GIB-601
Capacity: Max MW: 20 Max kcal/h: 17.200.000
View
GIB-602
Capacity: Max MW: 22,5 Max kcal/h: 19.350.000
View
GIB-603
Capacity: Max MW: 24 Max kcal/h: 20.640.000
View

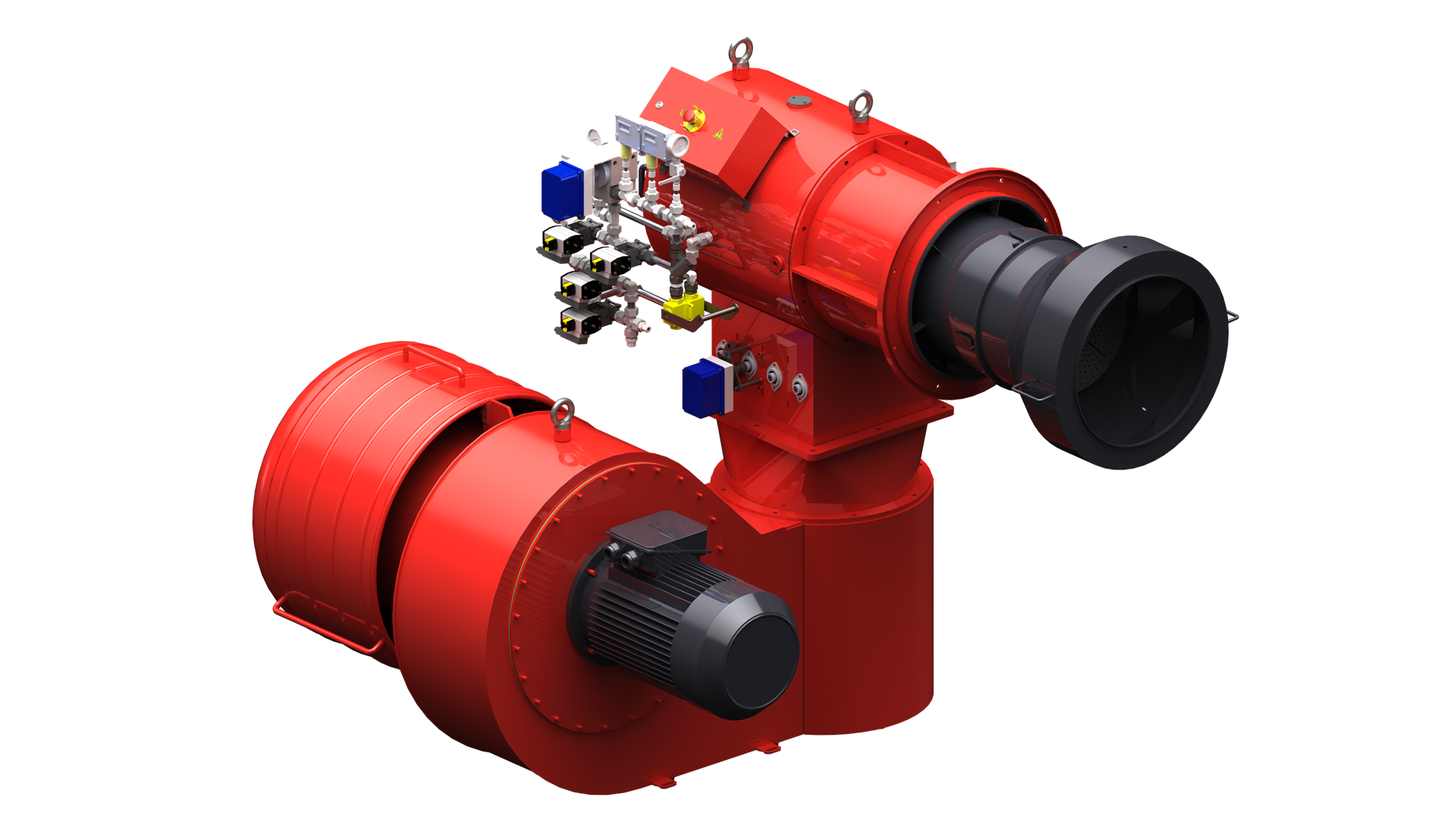

GIB-301
GIB-301
Download Product Visual

GIB-301

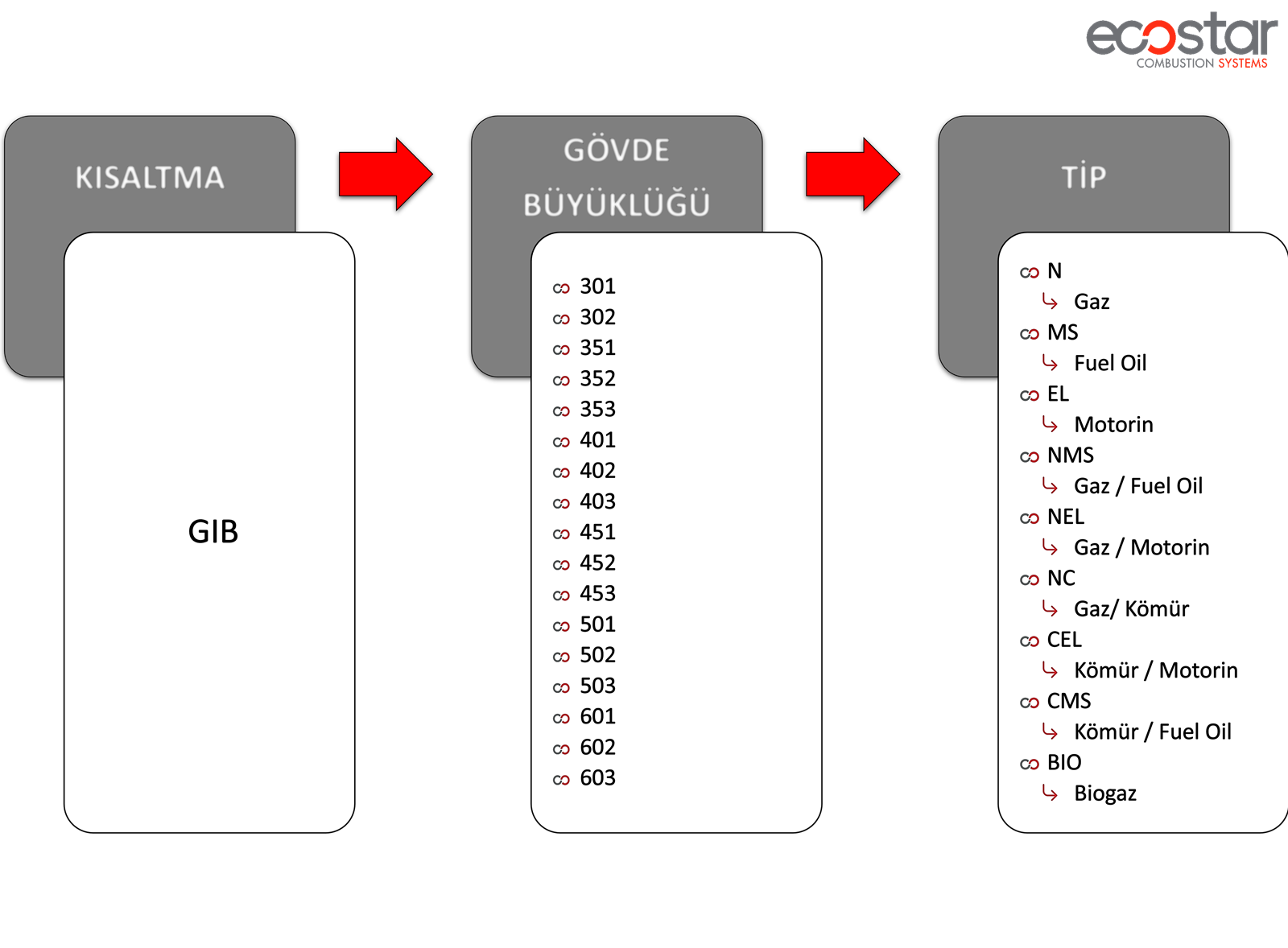

View Product Key
  • ECOSTAR GIB series industrial burners with monoblock body structure are used in hot water boilers, steam boilers, hot oil boilers and drying applications.
  • Natural Gas, LPG, Heavy Oil, Light Oil, Biogas, Pulverized Coal and special fuels can be used in GIB series industrial burners.
  • Thanks to the modular connection between the body and the air fan, it can be connected to 4 different air fan positions.
  • With different combustion nozzle designs and flame pipe lengths suitable for the process, it can work in harmony in different combustion chambers, including modernized applications.
  • They have wide usage area with turbulator designs developed for different types of flame forms.
  • Efficient combustion is ensured with the high pressure fan option according to the process needs. (25mbar & 50mbar)
  • High fire safety thanks to flame control with photocell.
  • Special design pilot ignition burners are available for ignition (ECOSTAR PAL burner is standard in GIB-500 series and above).
  • Light oil filtering and pumping station is produced externally according to customer demand.
  • Light oil filtering, heating and pumping station are produced externally according to customer demand.
  • The control panel of GIB series burners can be produced as integrated or external panel according to the process needs. In this way, it is possible to use on the process management room or local area.
  • Electronic modulating control is possible with GIB burners.
  • Thanks to its high pressure and low pressure liquid fuel lances, it offers various application according to special needs.
Burner Type Burner Capacity Natural Gas Consumption Diesel Consumption Fuel Oil Consumption
Max. MW Max. kcal/h Max. kg/h Max. kg/h Max. kg/h
GIB-301 3,2 2.752.000 334 270 285
* ØD L C K E H ØM1 ØM2 ØM3 VL DN
GIB-301 EL Ø268 2600 1900 900 500 2500 Ø380 Ø430 Ø500 570
GIB-301 MS Ø268 2600 1900 900 500 2500 Ø380 Ø430 Ø500 570
GIB-301 N Ø268 2600 1900 900 500 2500 Ø380 Ø430 Ø500 570 DN65
GIB-301 NEL Ø268 2600 1900 900 500 2500 Ø380 Ø430 Ø500 570 DN65
GIB-301 NMS Ø268 2600 1900 900 500 2500 Ø380 Ø430 Ø500 570 DN65

*All dimensions in mm.
