Monoblock Burners
HP Series Mechanical Modulating Gas Burners

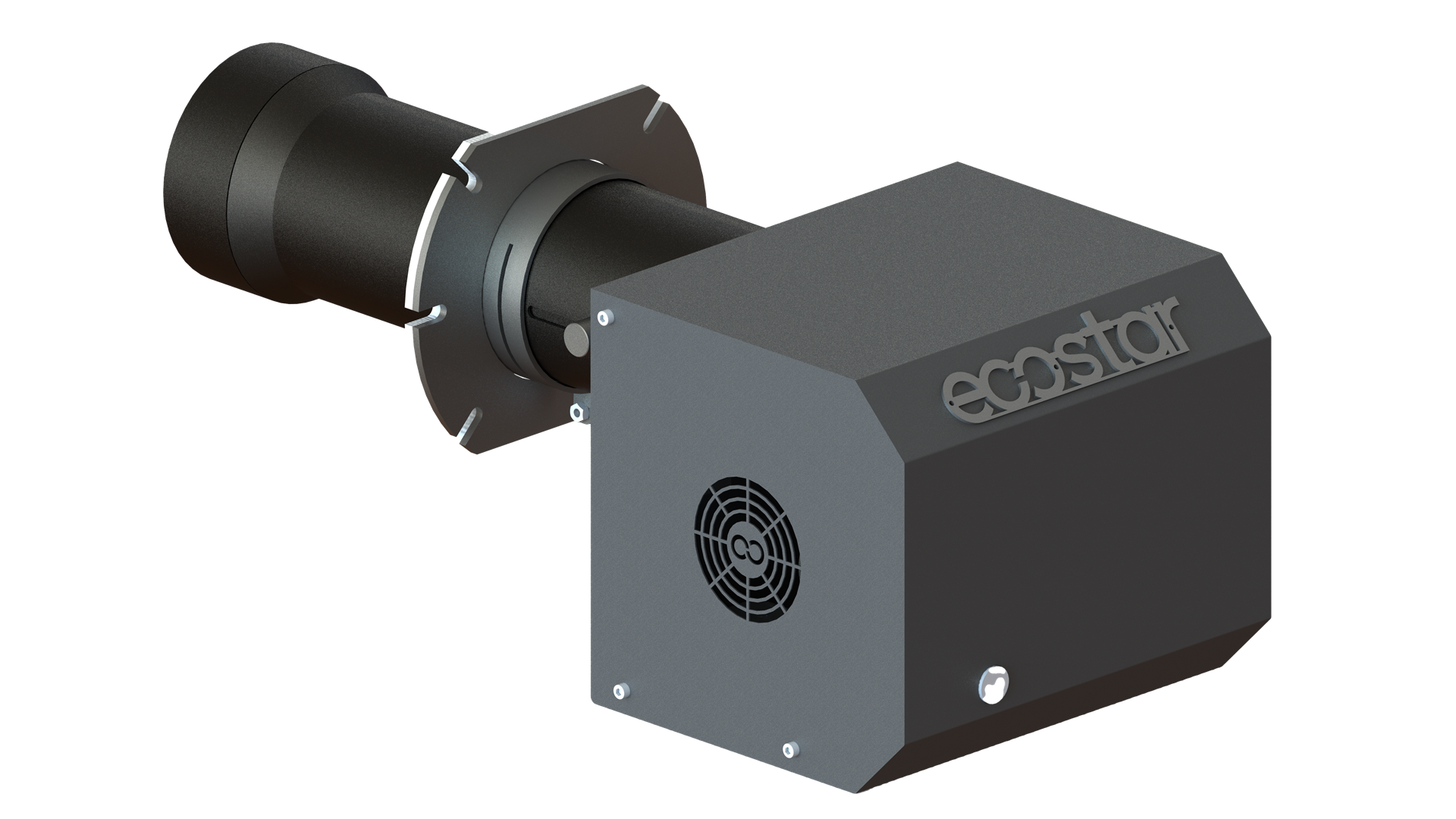

ECO 350 HP GC 3
- Modulating operation,
- Ability to work with Natural gas and LPG fuel,
- Operating capability of 300 mbar and 21 mbar gas pressure,
- Wide range of thermal capacity adjustment December according to heat requirement,
- Flame control with ignition and ionization electrode,
- Control of sufficient gas pressure with a minimum gas presostat,
- Uniform fuel mixture with a unique combustion nozzle with high combustion efficiency,
- Control of combustion air with air presostat,
- Minimum friction losses of the housing and combustion head,
- Easy access to all parts without removing the burner from the boiler,
- Compact design with minimal maintenance,
- Environmentally friendly with low NOx and CO emissions.< / li>
- Operation at low sound levels thanks to the specially designed burner housing.< / li>
- Combustion air flow rate adjustment with built-in fan flap,
| Model | Capacity | Capacity | Natural Gas Consumption | Fan Motor Power | Main Supply | Gas Inlet Diameter | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Minimum kcal/h | Maximum kcal/h | Minimum kW | Maximum kW | Minimum Nm³/h | Maximum Nm³/h | kW | VAC | Gaz Valve | Gaz Inlet Diameter | |
| ECO 350 HP GC 3 3/4" | 77.400 | 301.000 | 90 | 350 | 9 | 36 | 0,3 | 1N 230 | MB-DLE 407 | 3/4" |
| ECO 350 HP GC 3 1 1/4" | MB-DLE 412 | 1 1/4" | ||||||||
| * | L | Gmin | Gmax | H | K | B | C | ØP | M | ØD | ØD1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ECO 350 HP GC 3 | 446 | 238 | 288 | 320 | 160 | 262 | 170 | 10 | 142 | 120 | 139 |
*All dimensions are in MM.
| Specifications | ECO 350 HP GC 3 3/4" | ECO 350 HP GC 3 1 1/4" |
|---|---|---|
| Control Type | 2K | 2K |
| Air Flow Rate Setting | SM | SM |
| Adjustable Flame Tube Extension | ||
| Gas Valve | ||
| Minimum Gas Processore | ||
| Maximum Gas Processore | ||
| Air Processore | ||
| Flame Control | İO | İO |
| Ignition | DA | DA |
| VPS Gas Leakage Detector | ||
| Sliding Boiler Connection Flange | ||
| Service Shaft | ||
| 7 Pin Power Supply and First Stage Socket | ||
| 7 Pin Second Stage Connection Socket | ||
| Compatible with TS EN 676+A2 ve 2016/426/EC GAR | ||
| Electrical Protection Class | IP40 | IP40 |
:Not Included/N/A
:Optional
:Included/Available
1K:1 Stage
2K:2 Stage
O: Modulating
M: Manual
SM: Servomotor
İO: Ionization
F:Photocell
DA: Direct Ignition
PA: Pilot Ignition
