Monoblock Burners
HP Series Pneumatic Modulating Gas Burners

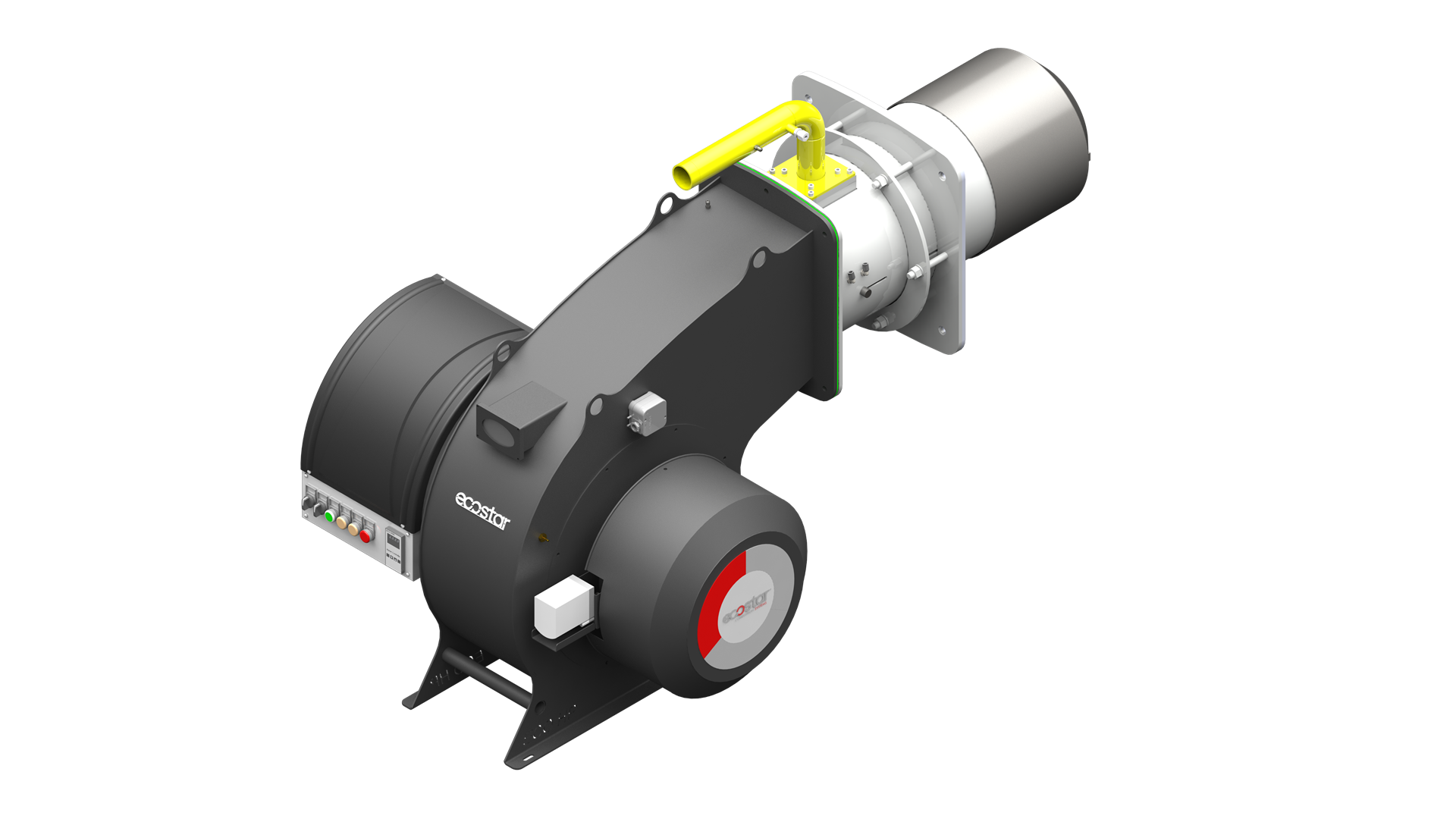

ECO 4500 HP GC 3
- Modulating operation,
- Mechanical, pneumatic or electronic modulating control option,
- Natural gas and LPG fuel usage,
- Operating possibility of 300 mbar and 21 mbar gas pressure,
- Wide thermal capacity range according to heat demand,
- Supply gas pressure control with minimum gas pressure switch,
- Combustion air control with air pressure switch,
- Sliding flange for different boiler types,
- Working at low noise levels with light aluminum alloy body,
- High combustion efficiency, uniform fuel and air mixing with original combustion head,
- Minimum friction losses throughout the body and combustion head,
- Flame control with ignition and ionization electrodes,
- Compact design with minimum maintenance,
- Easy access to all parts without dismantling the burner from the boiler,
- Direct ignition and optional pilot ignition,
- Environmentally friendly with low CO and NOx emissions.
- Working at low sound levels with to the specially designed burner body.
- Ease of maintenance with the hinged system without the need to separate the burner from the boiler,

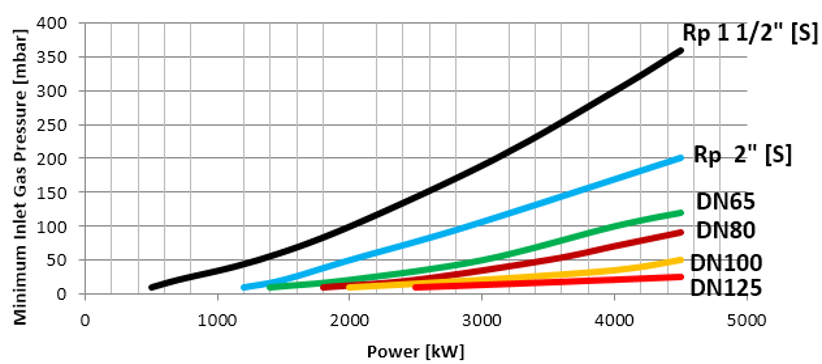

| Burner Type | Capacity | Capacity | Natural Gas Consumption | Fan Motor Power | Main Supply | Gas Inlet Diameter | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Minimum kcal/h | Maximum kcal/h | Minimum kW | Maximum kW | Minimum Nm³/h | Maximum Nm³/h | kW | VAC | Gaz Valve | Gaz Inlet Diameter | |
| ECO 4500 HP GC 3 1 1/2" -S | 645.00 | 3.870.000 | 750 | 4500 | 78 | 469 | 7,5 | 3N 400 | VGD 20.4011 | 1 1/2" |
| ECO 4500 HP GC 3 2" -S | VGD 20.5011 | 2" | ||||||||
| ECO 4500 HP GC 3 DN65 | VGD 40.065 | DN65 | ||||||||
| ECO 4500 HP GC 3 DN80 | VGD 40.080 | DN80 | ||||||||
| ECO 4500 HP GC 3 DN100 | VGD 40.0100 | DN100 | ||||||||
| ECO 4500 HP GC 3 DN125 | VGD 40.0125 | DN125 | ||||||||
| * | L | Gmin | Gmax | H | K | B | C | ØP | M | ØD | ØD1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ECO 4500 HP GC 2 | 1757 | 485 | 555 | 977 | 458 | 1135 | 730 | 22 | 400 | 358 | 370 |
*All dimensions are in mm.
| Specifications | ECO 4500 HP GC 3 1 1/2" -S | ECO 4500 HP GC 3 2" -S | ECO 4500 HP GC 3 DN65 | ECO 4500 HP GC 3 DN80 | ECO 4500 HP GC 3 DN100 | ECO 4500 HP GC 3 DN125 |
|---|---|---|---|---|---|---|
| Control Type | O | O | O | O | O | O |
| Mechanical Modulating (21mbar) | ||||||
| Mechanical Modulating (300mbar) | ||||||
| Pneumatic Modulating (21mbar) | ||||||
| Pneumatic Modulating (300mbar) | ||||||
| Electronic Modulating (21mbar) | ||||||
| Electronic Modulating (300mbar) | ||||||
| Air Flow Rate Setting | SM | SM | SM | SM | SM | SM |
| Adjustable Flame Tube Extension | ||||||
| Gas Valve | ||||||
| Minimum Gas Processore | ||||||
| Maximum Gas Processore | ||||||
| Air Processore | ||||||
| Flame Control | İO | İO | İO | İO | İO | İO |
| Ignition | DA | DA | DA | DA | DA | DA |
| VPS Gas Leakage Detector | ||||||
| Sliding Boiler Connection Flange | ||||||
| Service Hinge | ||||||
| 7 Pin Power Supply and First Stage Socket | ||||||
| 7 Pin Second Stage Connection Socket | ||||||
| Compatible with TS EN 676+A2 ve 2016/426/EC GAR | ||||||
| Electrical Protection Class | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 |
:Not Included/N/A
:Optional
:Included/Available
1K:1 Stage
2K:2 Stage
O: Modulating
M: Manual
SM: Servomotor
İO: Ionization
F:Photocell
DA: Direct Ignition
PA: Pilot Ignition
