Ecostar
Rotary Industrial Burner

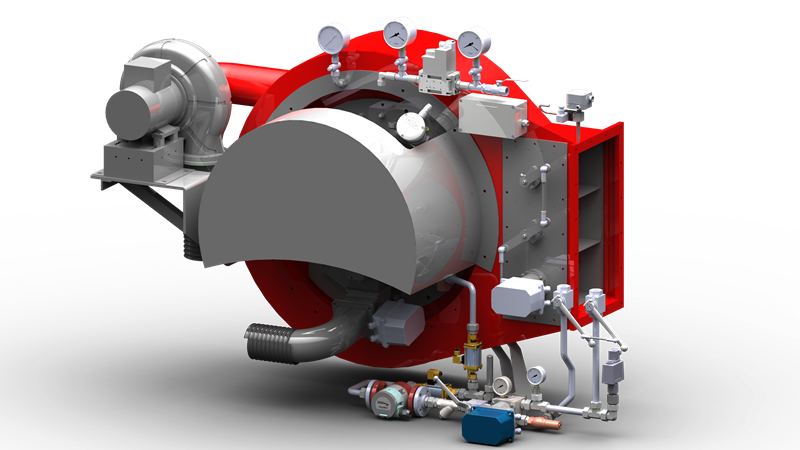

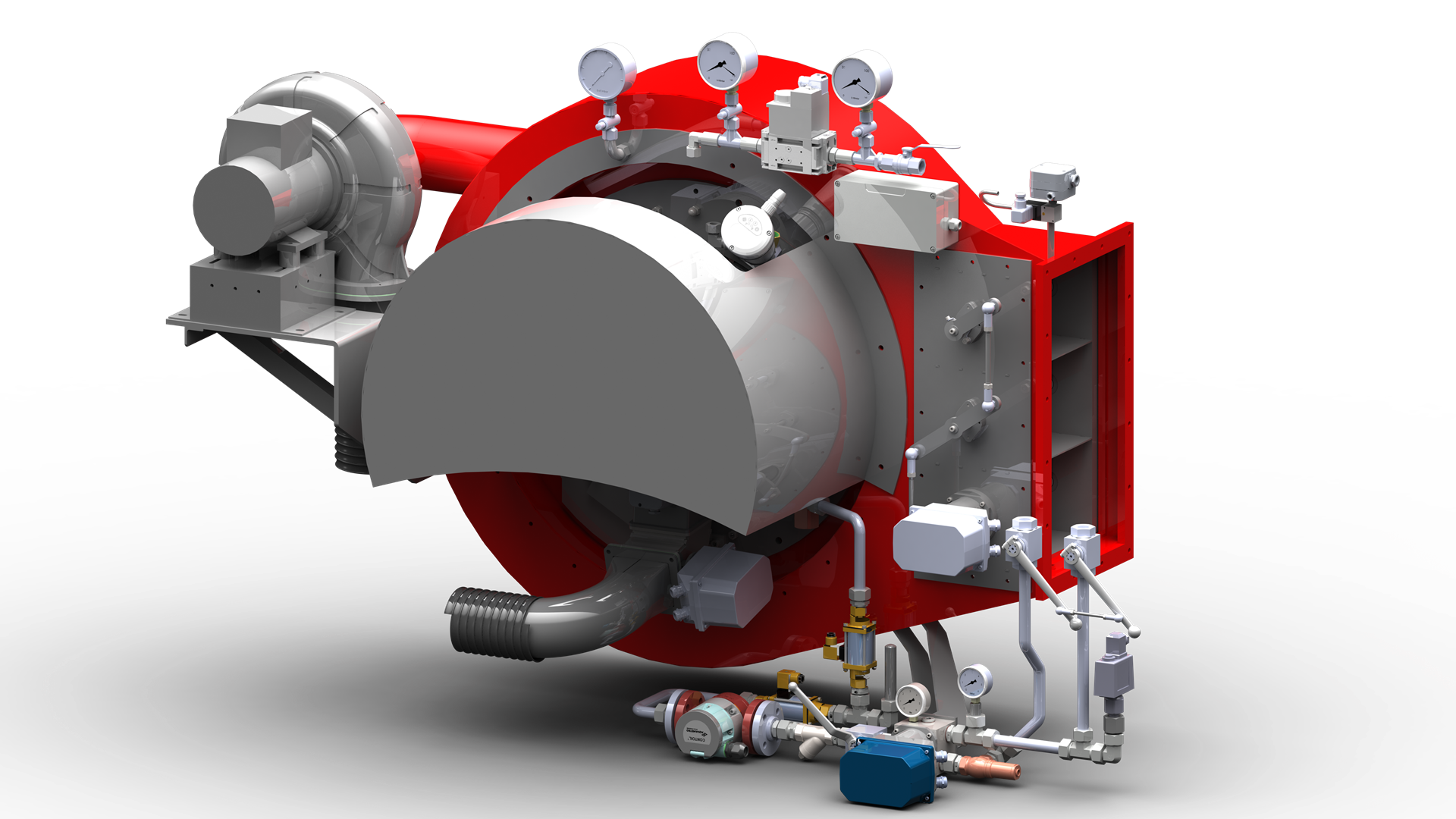

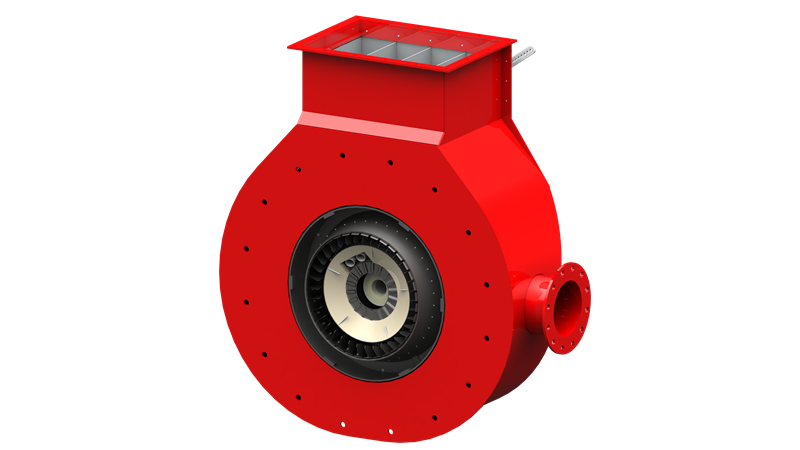

ECO-RO-700
• They are high efficiency burners that can burn all technical fuels in various sizes between 349 kW and 29,000 kW.
• They have the feature of burning four different fuels such as heavy oil/diesel/natural gas/biogas etc. coming with separate fuel lines in the same burner.
• Both fuel-oil and diesel can be connected with 2 different fuel lines.
• Optional connection holes on the burner body allow the gas burner to be quickly converted into a combined burner at the work site.
• Ecostar® rotary cup burners provide excellent performance in boiler applications on cargo ships, general cargo,container, passenger ships and car carriers (RoRo) shi
| EUROPEAN STANDARD UNIT CONVERSION | |||||||
|---|---|---|---|---|---|---|---|
| Natural Gas Consumption | Diesel Consumption | Fuel Oil Consumption | Burner Capacity | PRIMARY AIR FAN AIR ATOMIZATION |
|||
| Max (Nm3/h) | Max (kg/h) | Max (kg/h) | Max (MW) | Max (kcal/h) | (Nm3/h) | mbar | |
| ECO-RO-700 | 849 | 686 | 725 | 8,14 | 7.000.400 | 800 | 53+Δp Boiler |
| US STANDARD UNIT CONVERSION | |||||||
|---|---|---|---|---|---|---|---|
| Natural Gas Consumption | Diesel Consumption | Fuel Oil Consumption | Burner Capacity | PRIMARY AIR FAN AIR ATOMIZATION |
|||
| Max (ft³/h) | Max (lb/h) | Max (lb/h) | Max (MMBtu/hr) | Max (kcal/h) | (ft³/h) | in. w.c. | |
| ECO-RO-700 | 29,982.44 | 1,512.37 | 1,598.35 | 27.77 | 7,000,400 | 28,252.00 | 21.3 + ΔP Boiler |
