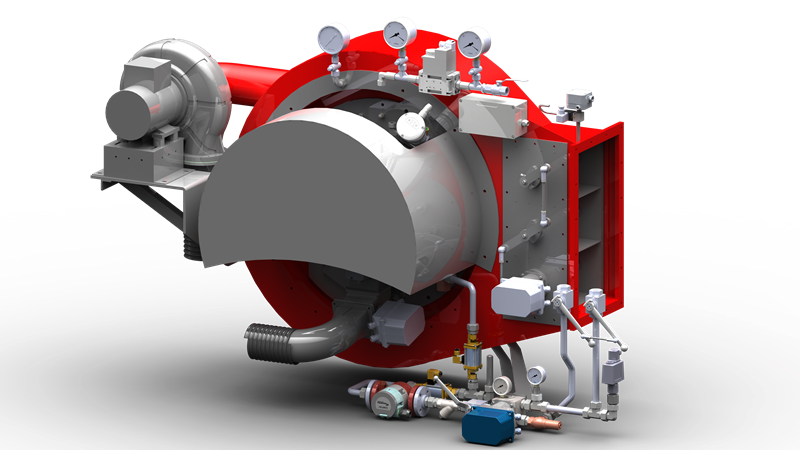

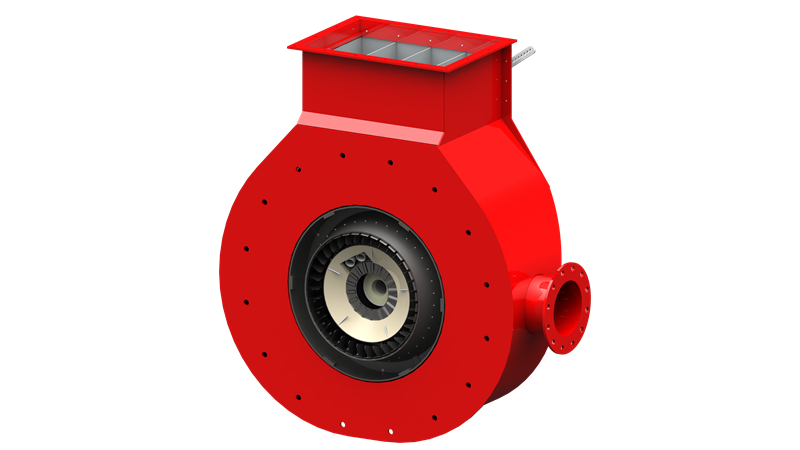

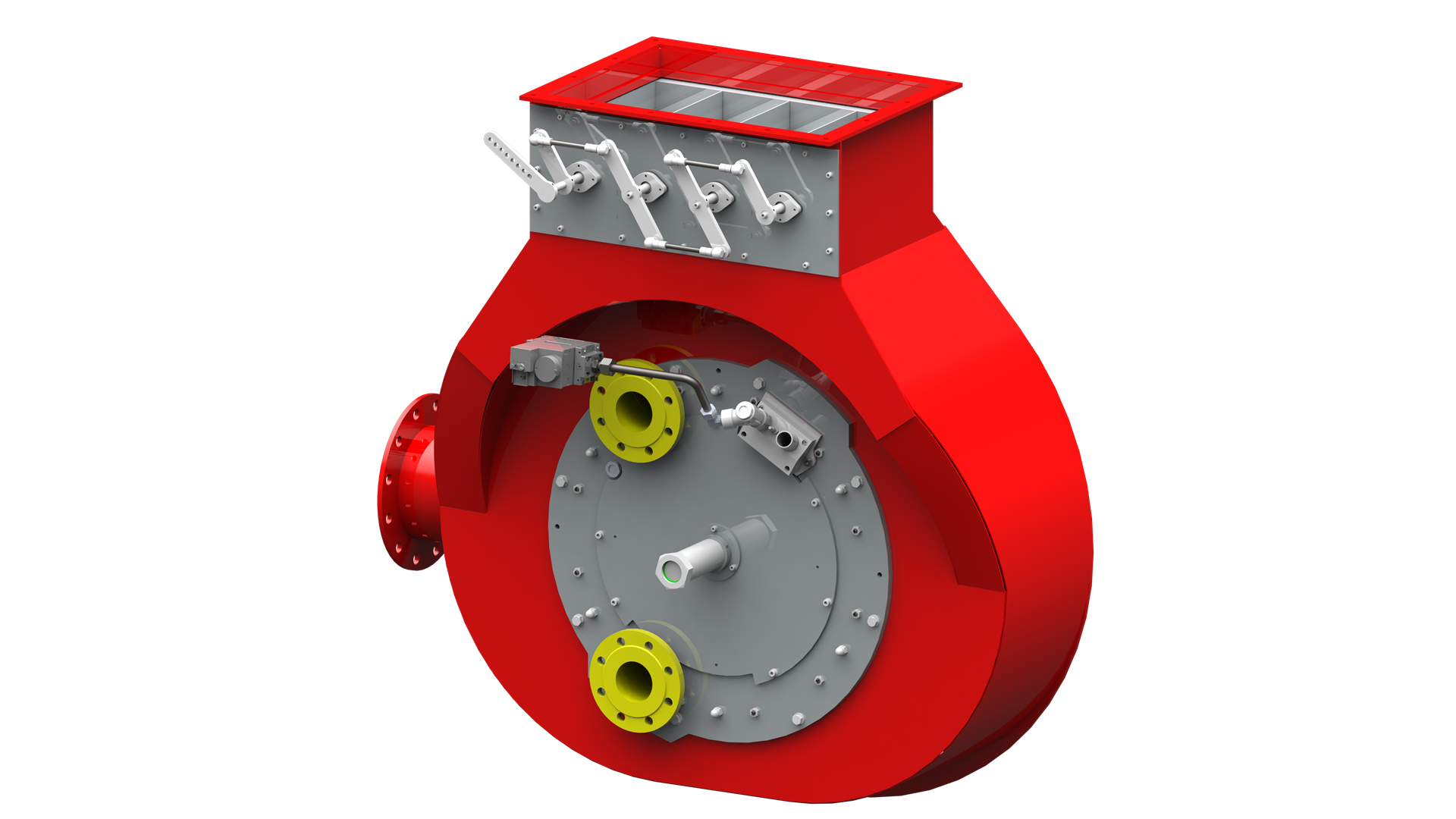

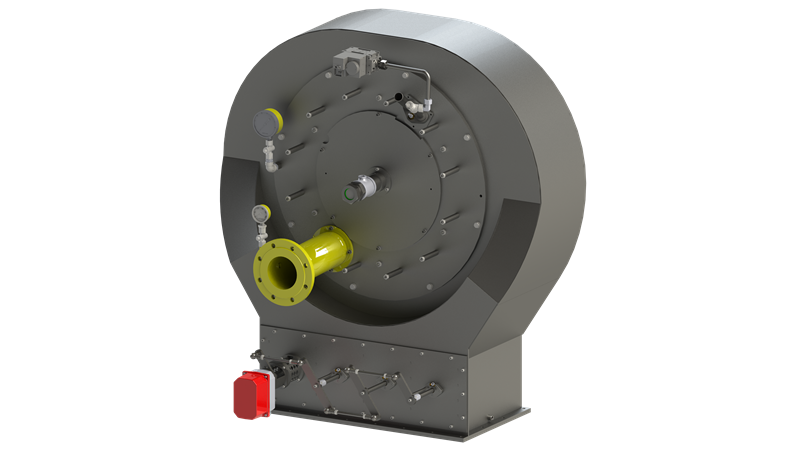

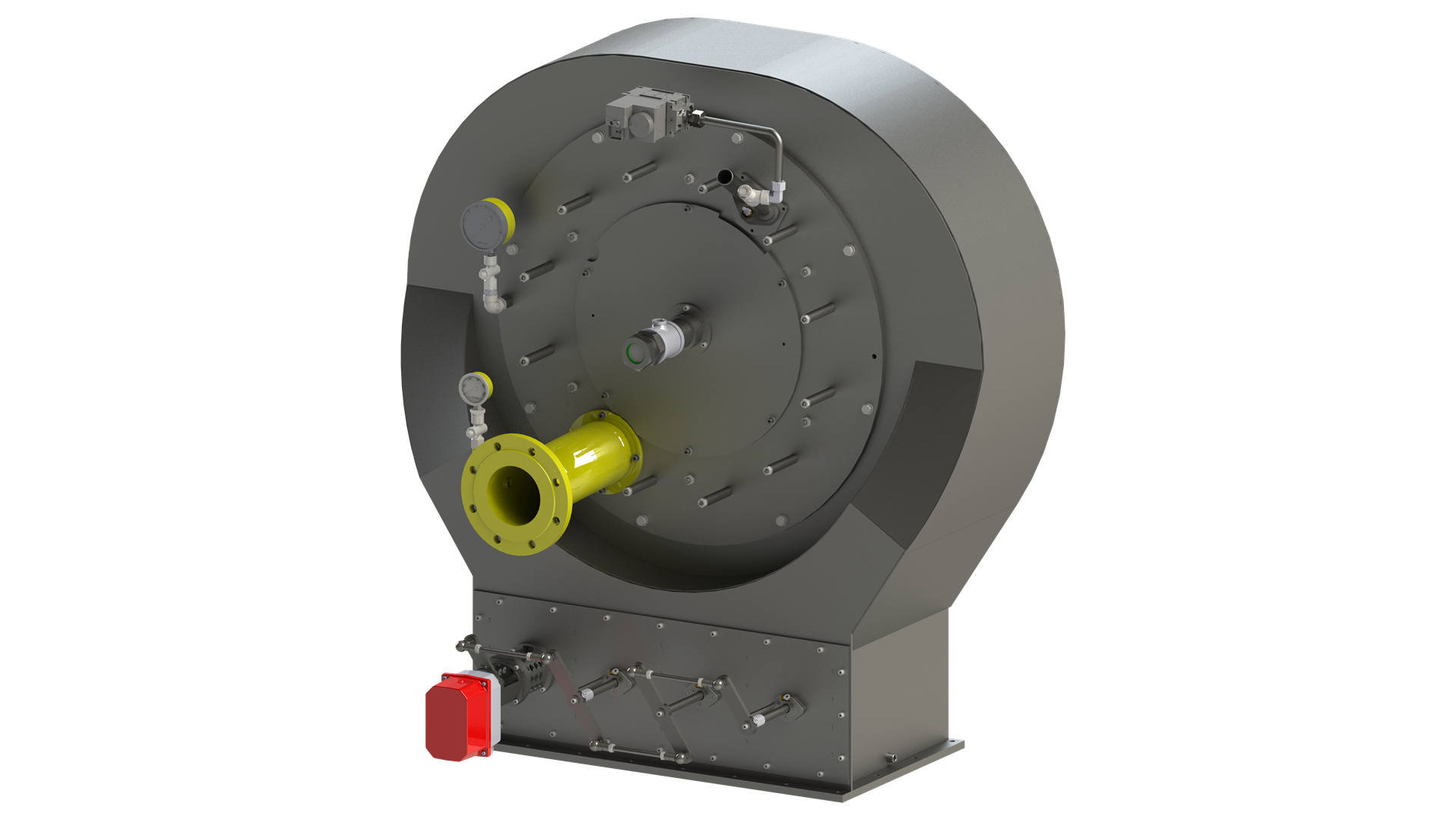

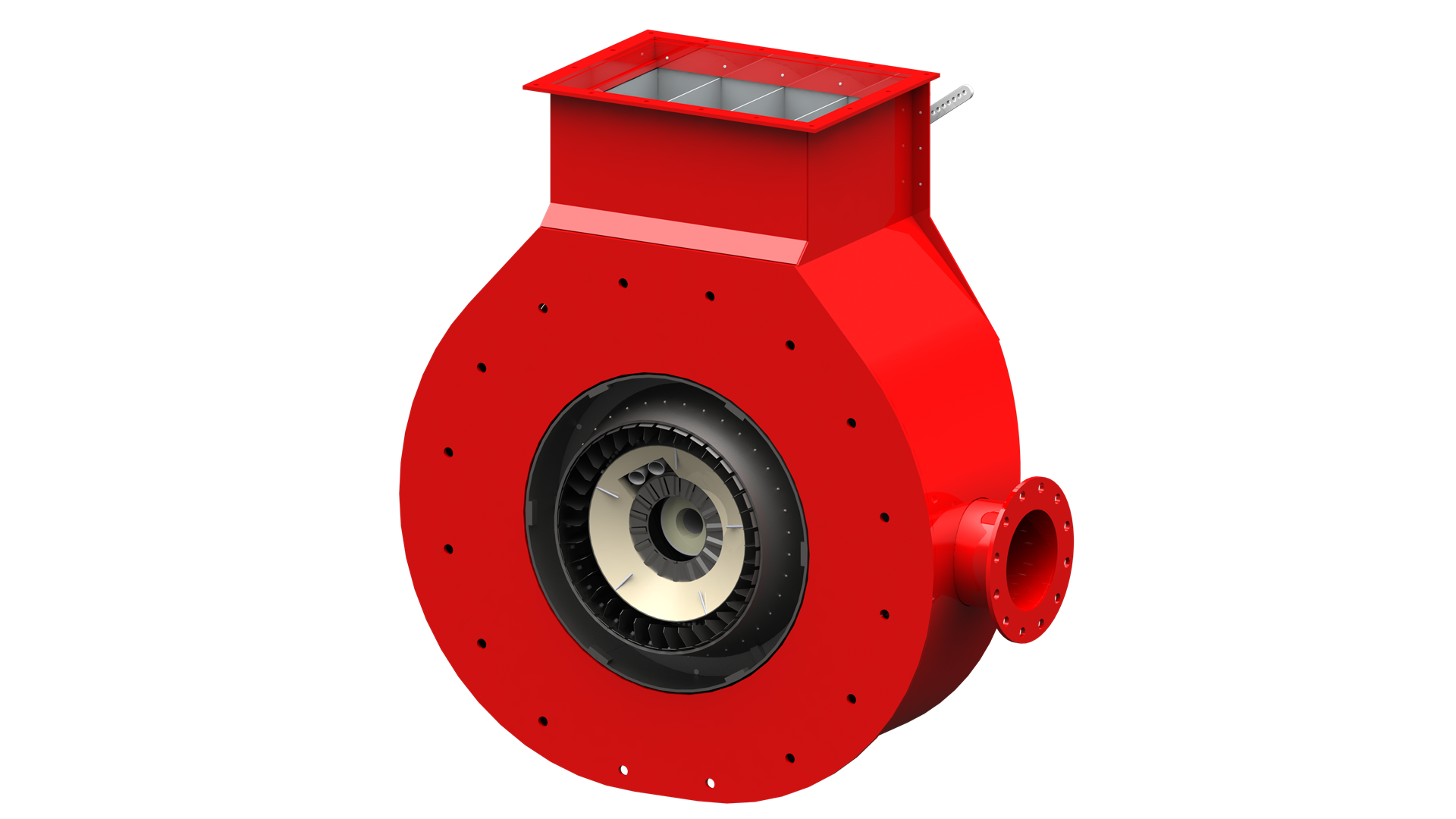

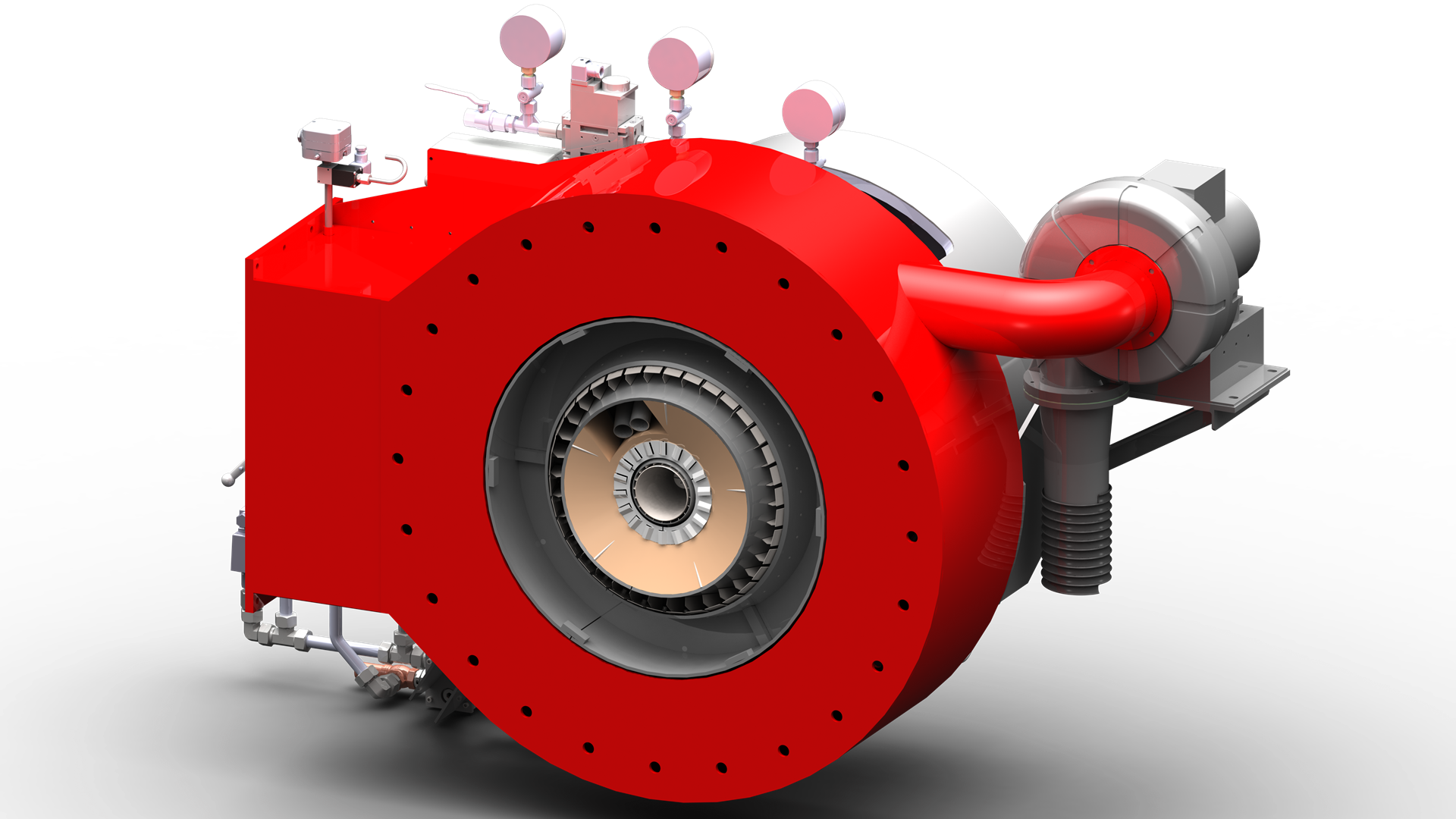

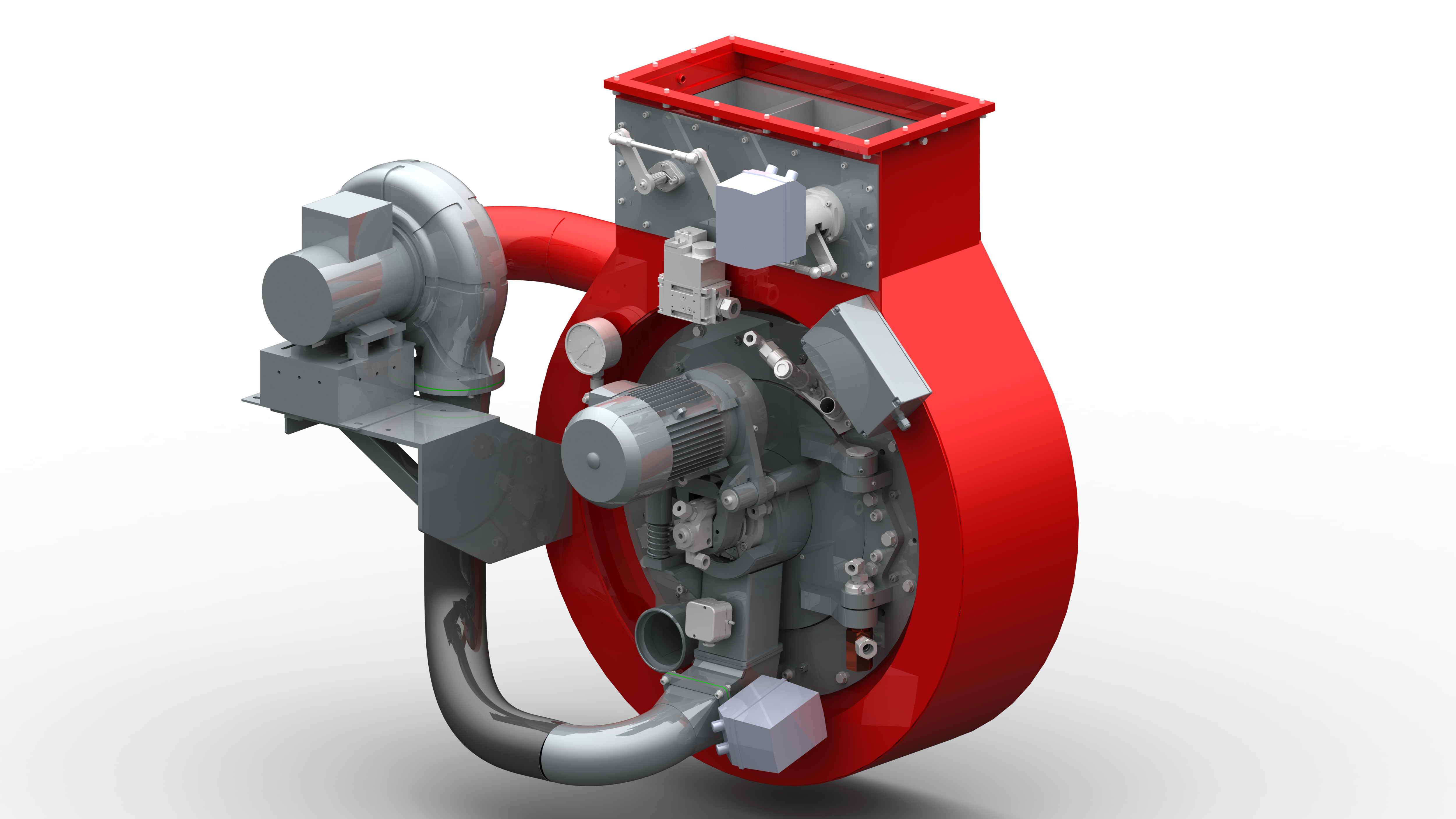

Ecostar

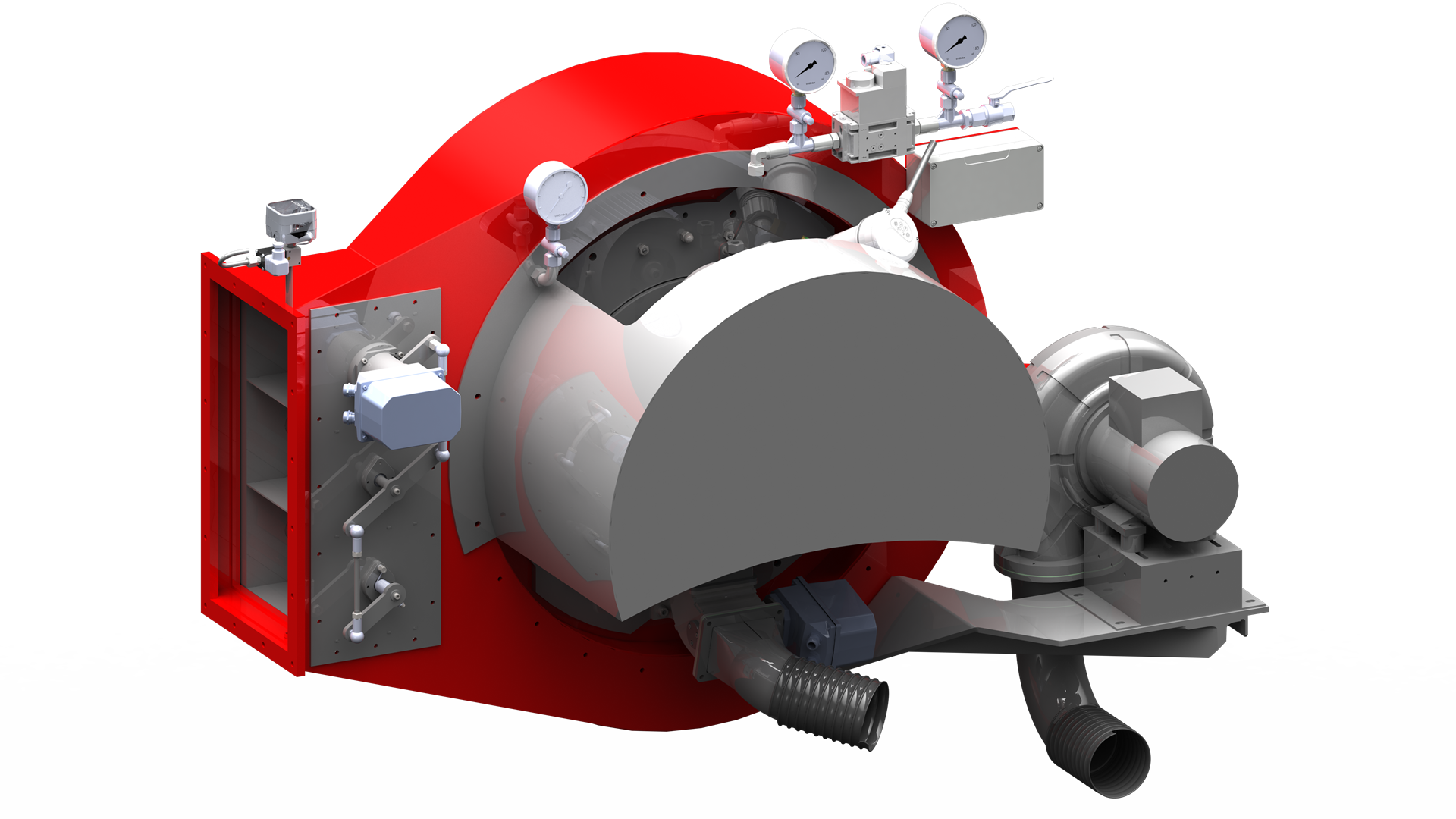

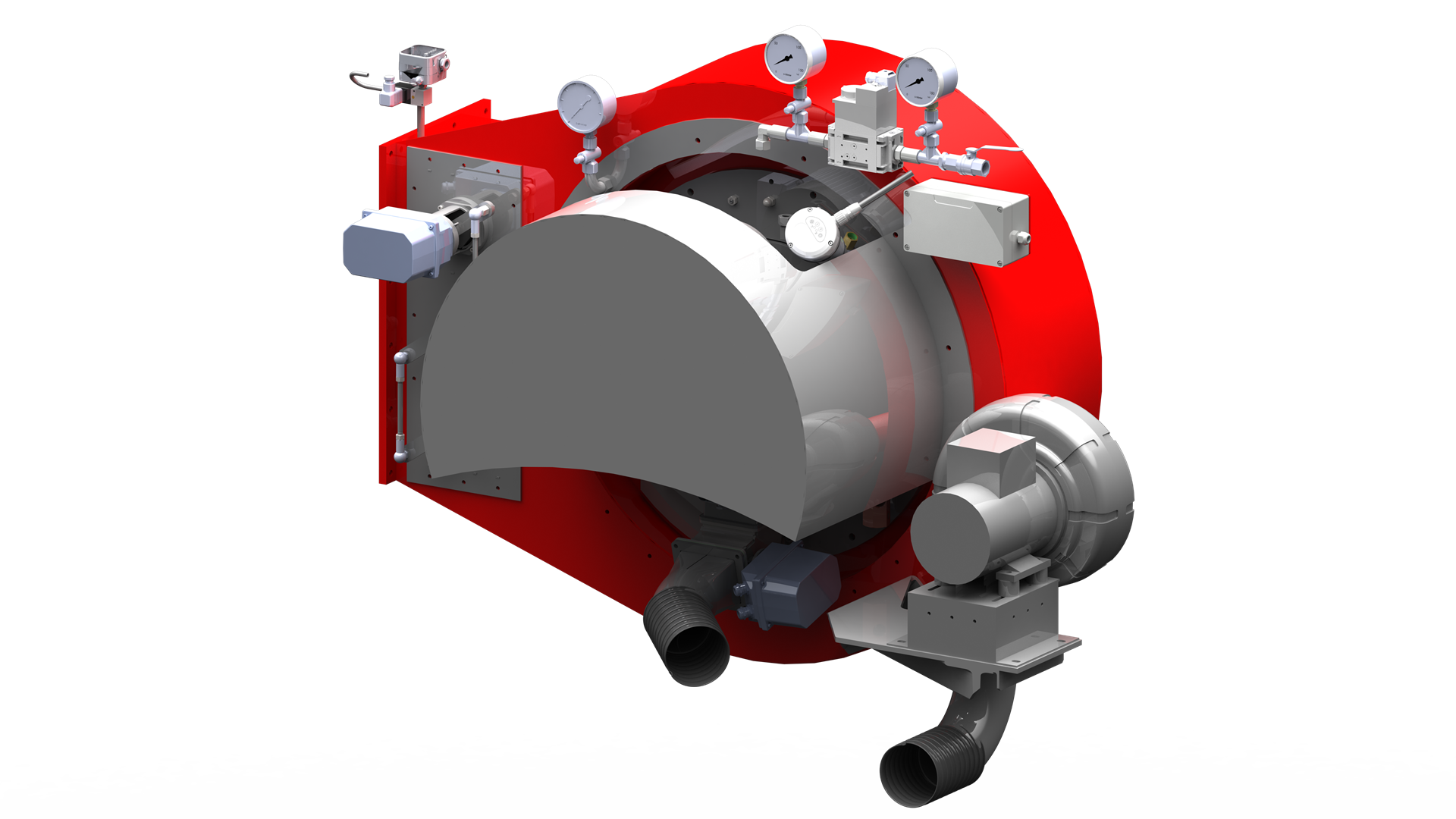

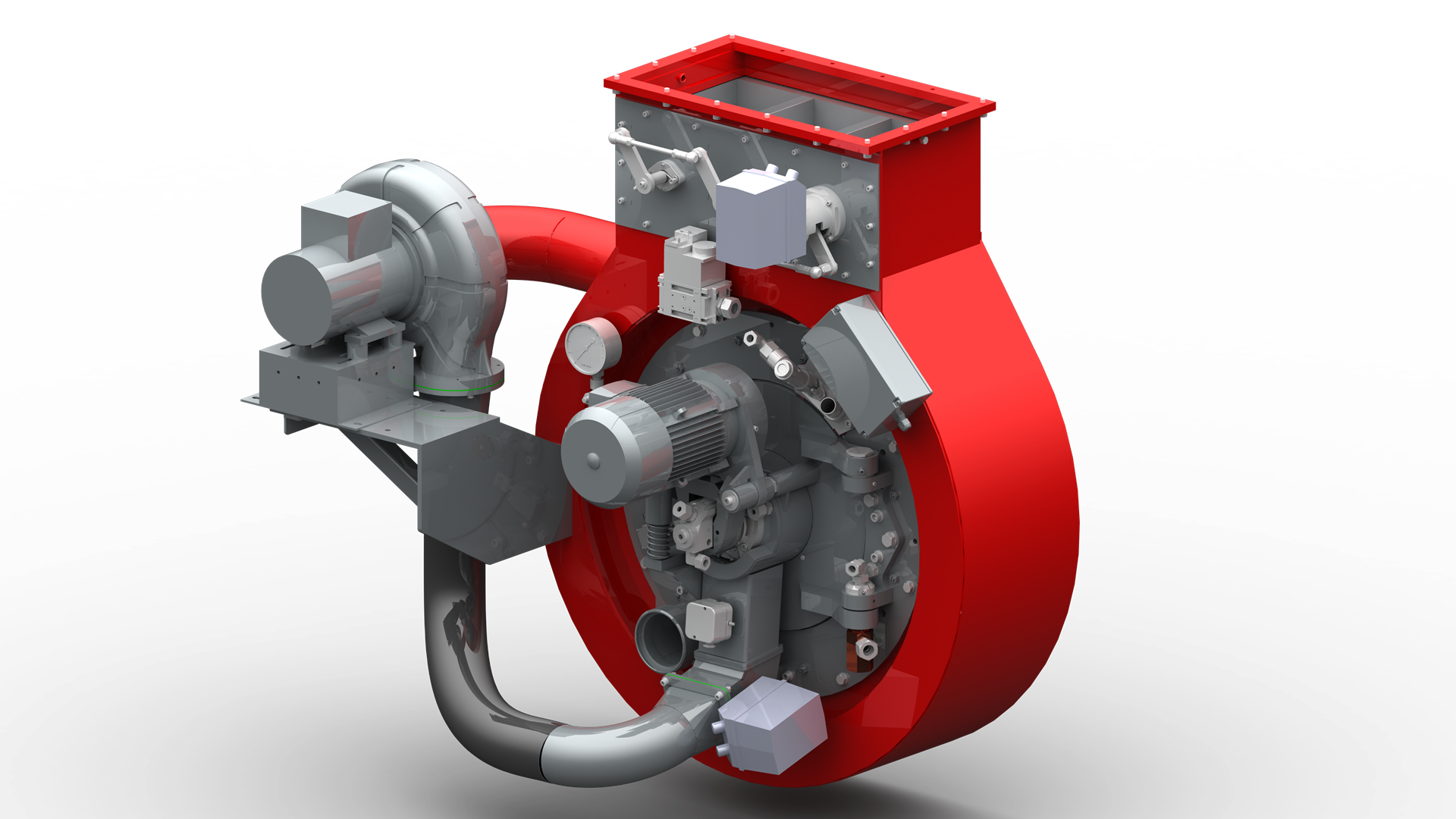

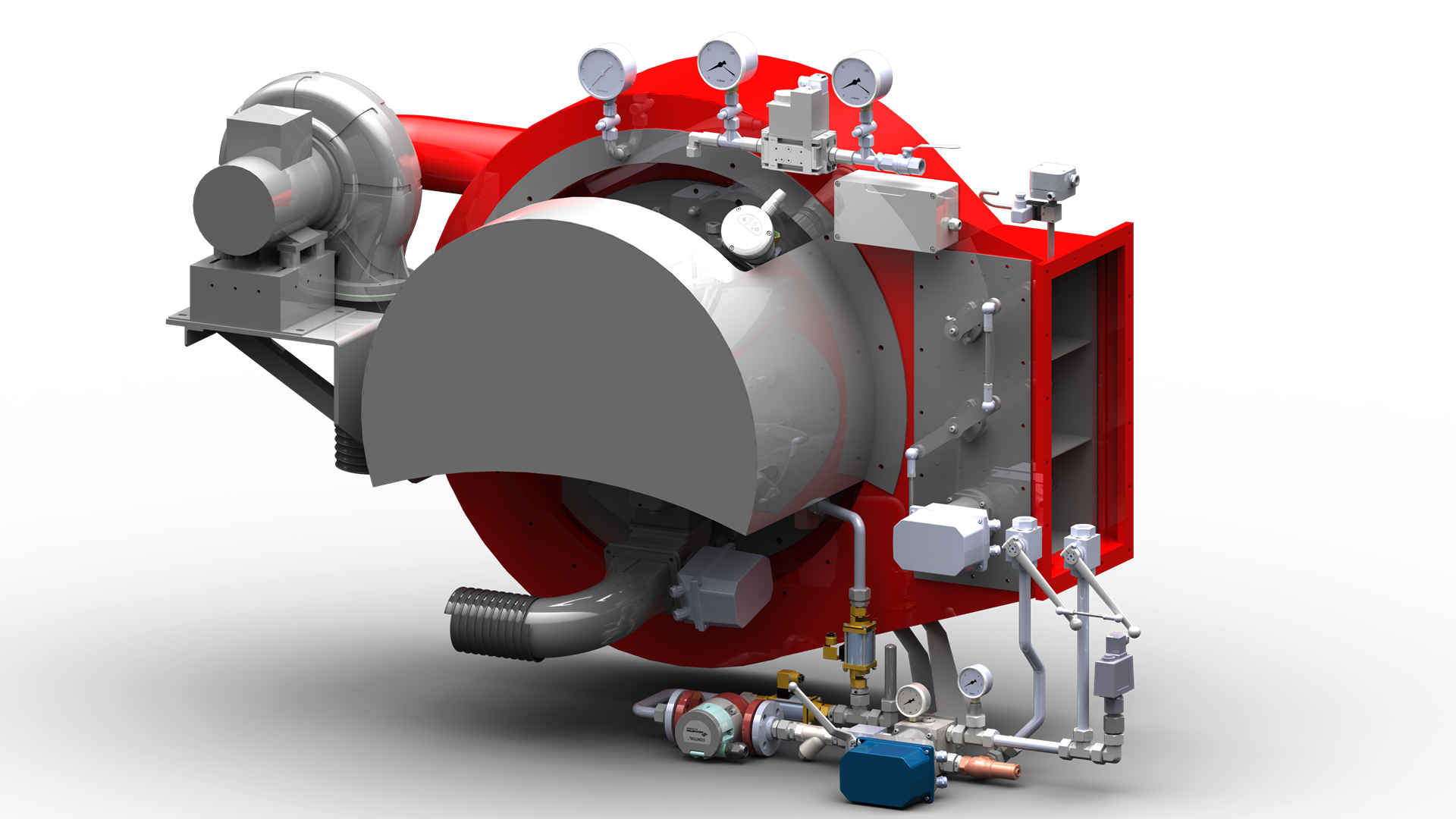

Rotary Industrial Burner
ECO-RO-1500
• They are high efficiency burners that can burn all technical fuels in various sizes between 349 kW and 29,000 kW.
• They have the feature of burning four different fuels such as heavy oil/diesel/natural gas/biogas etc. coming with separate fuel lines in the same burner.
• Both fuel-oil and diesel can be connected with 2 different fuel lines.
• Optional connection holes on the burner body allow the gas burner to be quickly converted into a combined burner at the work site.
• Ecostar® rotary cup burners provide excellent performance in boiler applications on cargo ships, general cargo,container, passenger ships and car carriers (RoRo) shi
| EUROPEAN STANDARD UNIT CONVERSION | |||||||
|---|---|---|---|---|---|---|---|
| Natural Gas Consumption | Diesel Consumption | Fuel Oil Consumption | Burner Capacity | PRIMARY AIR FAN AIR ATOMIZATION |
|||
| Max (Nm3/h) | Max (kg/h) | Max (kg/h) | Max (MW) | Max (kcal/h) | (Nm3/h) | mbar | |
| ECO-RO-1500 | 1.939 | 1.569 | 1.658 | 18,61 | 16.000.300 | 1830 | 53+Δp Boiler |
| US STANDARD UNIT CONVERSION | |||||||
|---|---|---|---|---|---|---|---|
| Natural Gas Consumption | Diesel Consumption | Fuel Oil Consumption | Burner Capacity | PRIMARY AIR FAN AIR ATOMIZATION |
|||
| Max (ft³/h) | Max (lb/h) | Max (lb/h) | Max (MMBtu/hr) | Max (kcal/h) | (ft³/h) | in. w.c. | |
| ECO-RO-1500 | 68,475.79 | 3,459.05 | 3,655.26 | 63.48 | 16,000,300 | 64,626.45 | 21.3 + ΔP Boiler |
