Ecostar

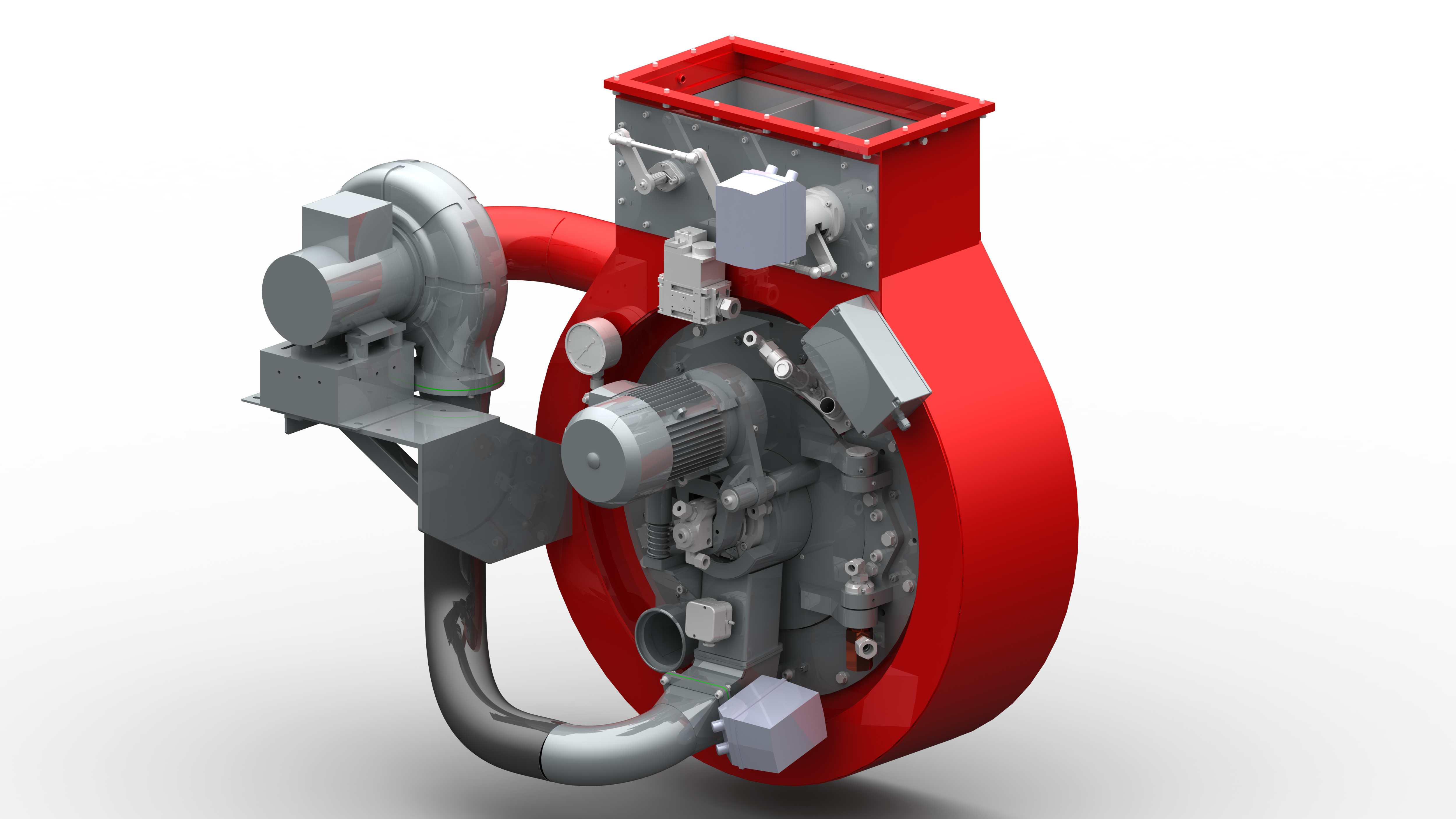

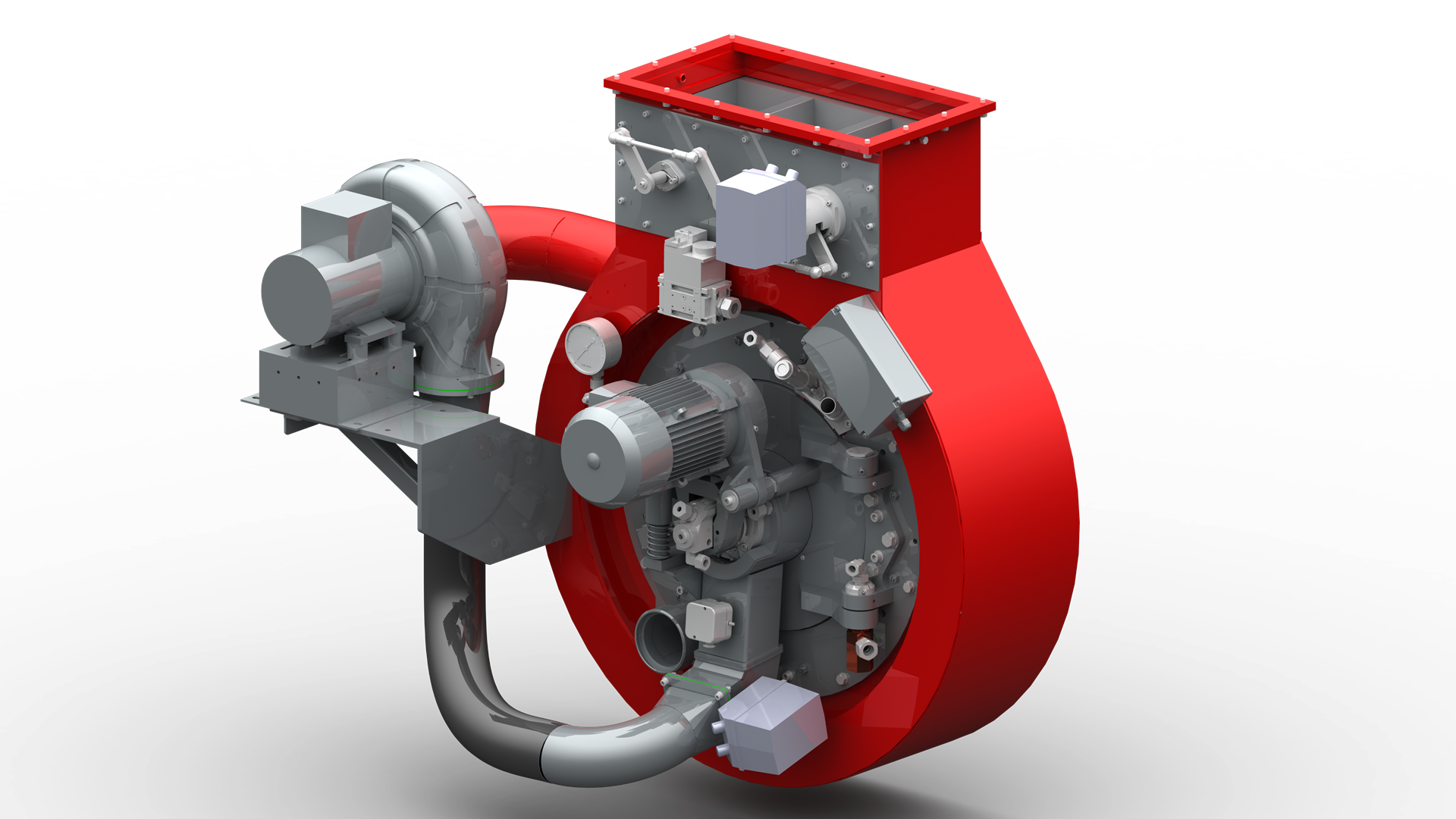

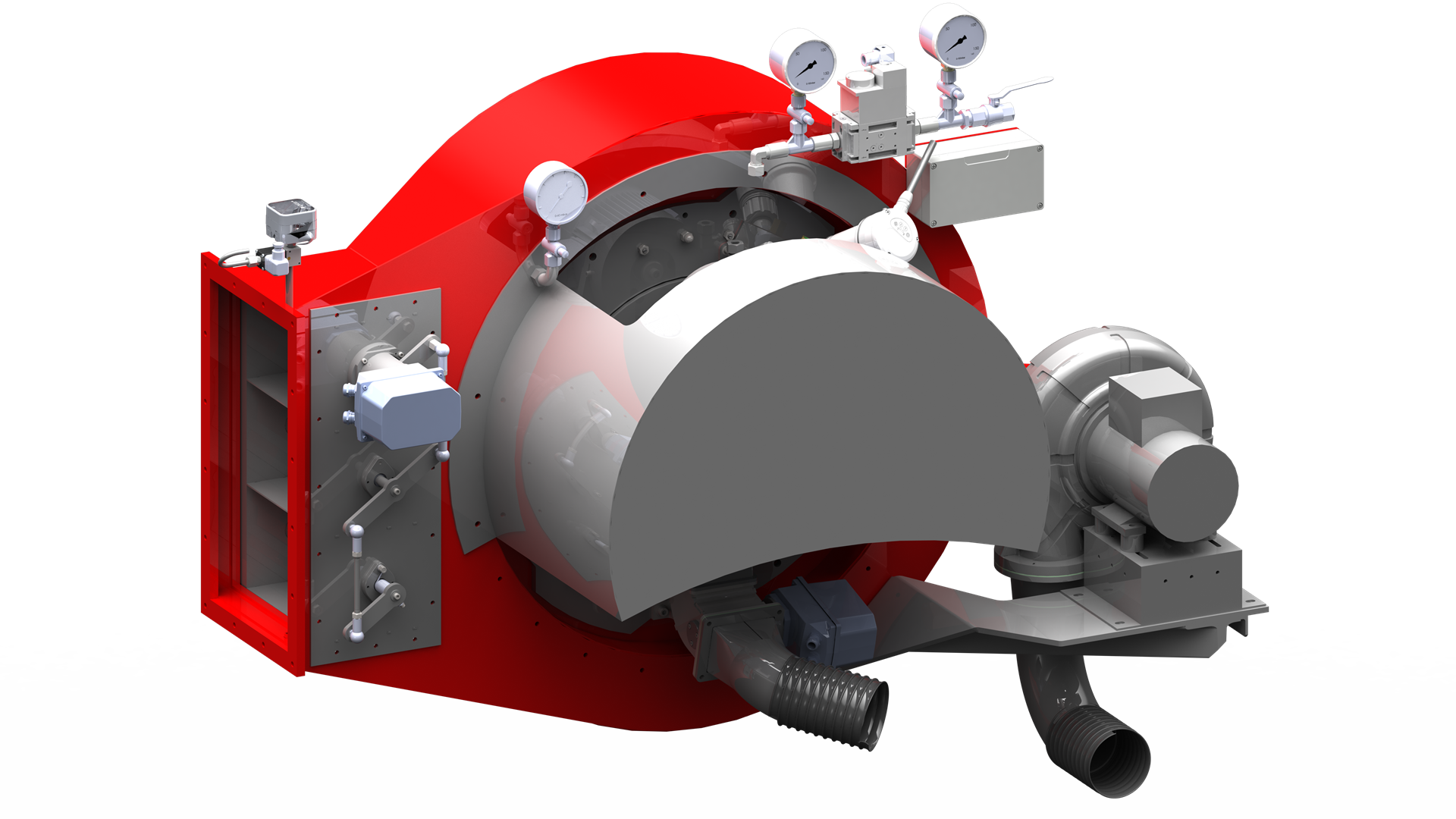

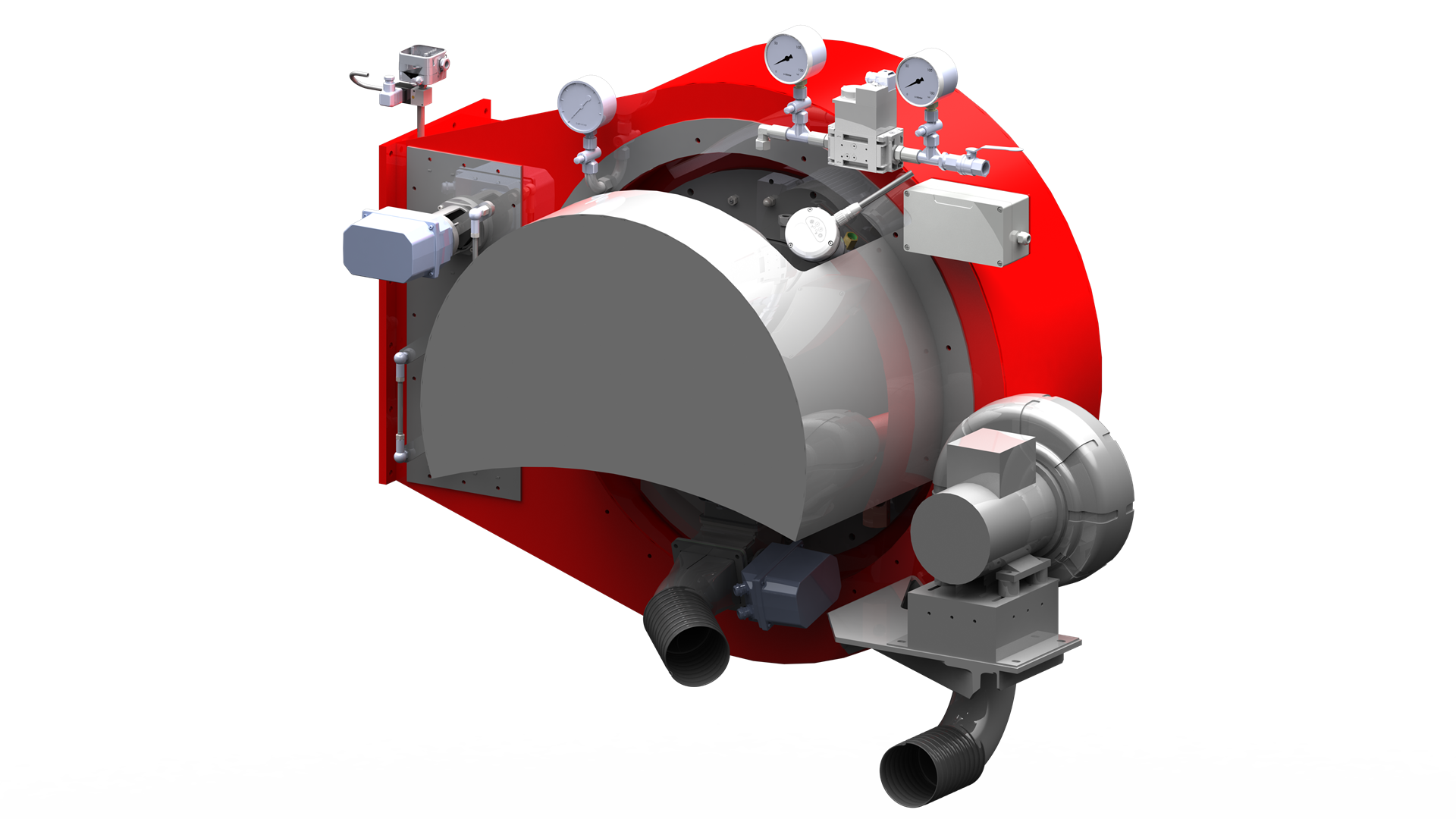

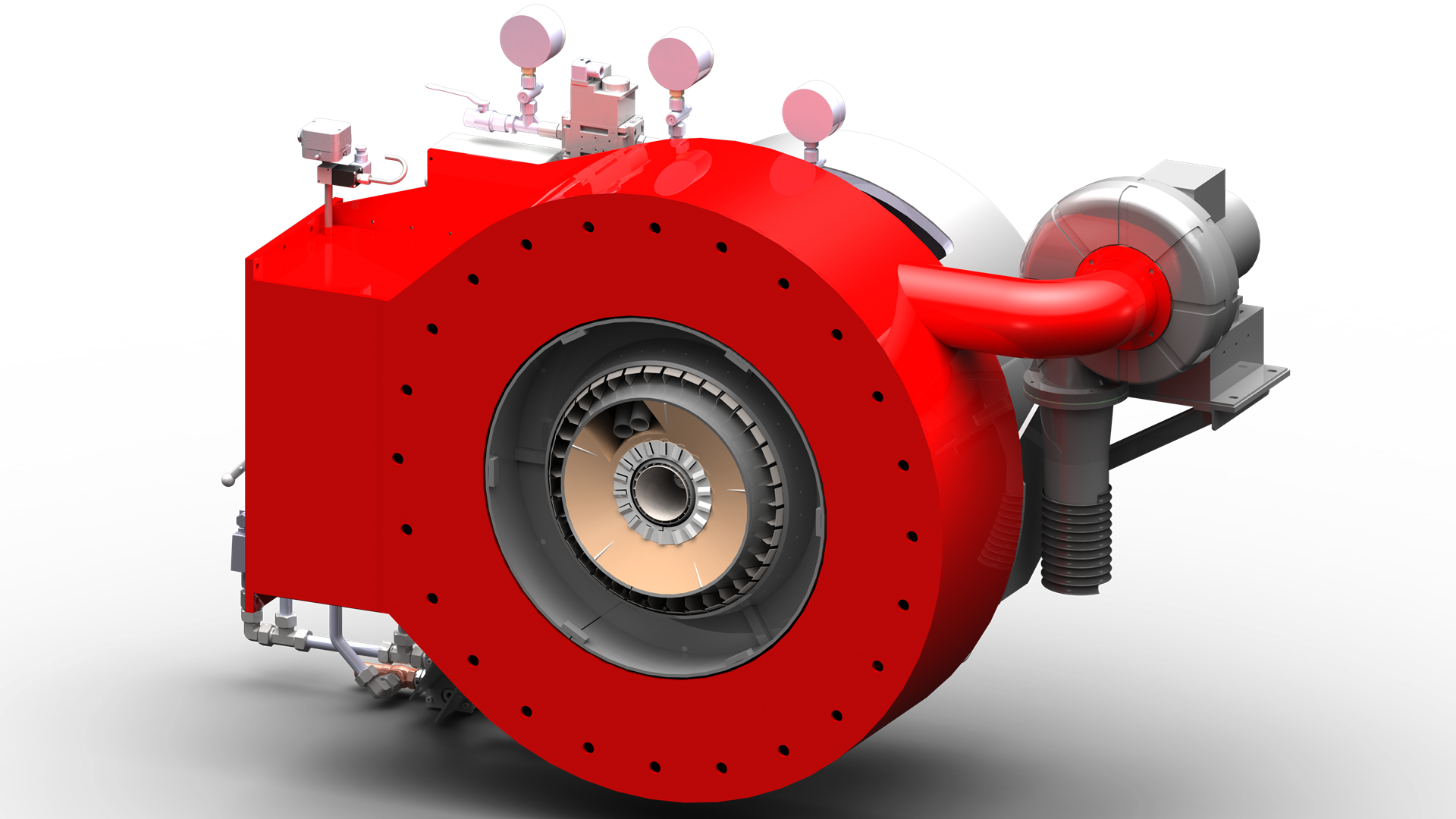

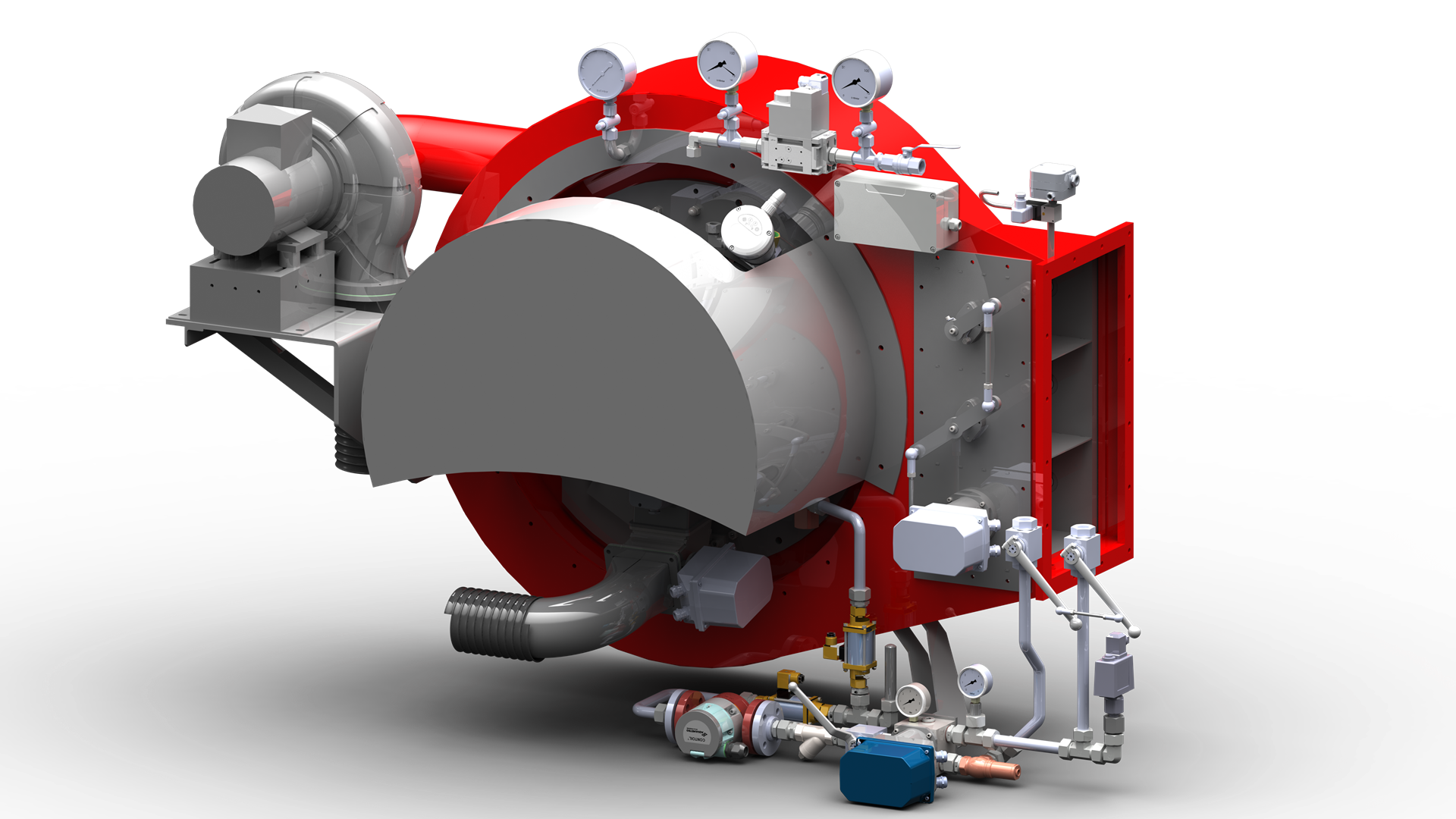

Rotary Industrial Burner

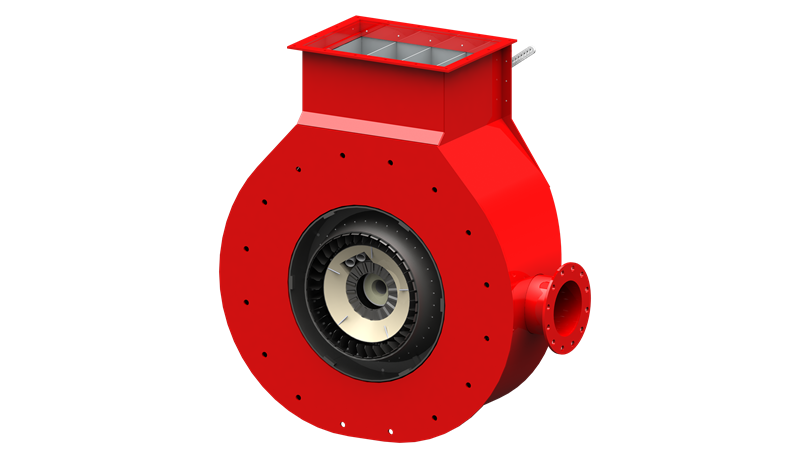

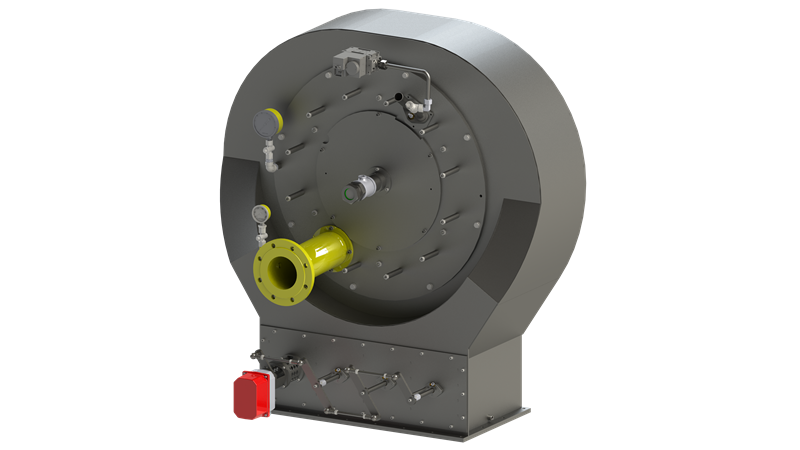

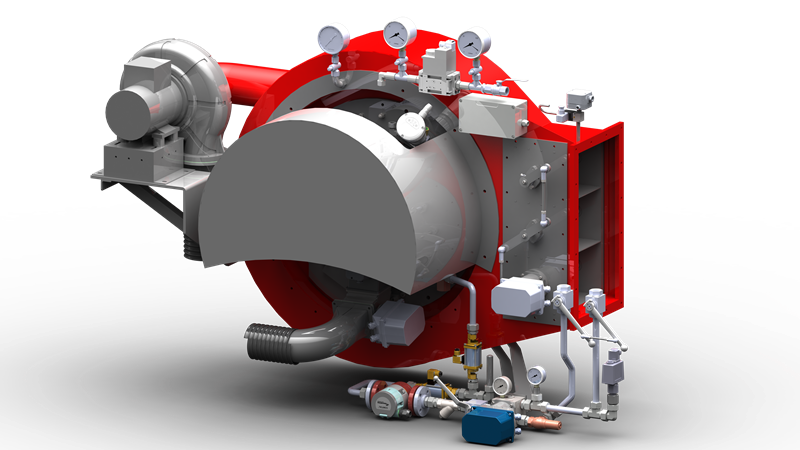

ECO-RO-2000
• They are high efficiency burners that can burn all technical fuels in various sizes between 349 kW and 29,000 kW.
• They have the feature of burning four different fuels such as heavy oil/diesel/natural gas/biogas etc. coming with separate fuel lines in the same burner.
• Both fuel-oil and diesel can be connected with 2 different fuel lines.
• Optional connection holes on the burner body allow the gas burner to be quickly converted into a combined burner at the work site.
• Ecostar® rotary cup burners provide excellent performance in boiler applications on cargo ships, general cargo,container, passenger ships and car carriers (RoRo) shi
| EUROPEAN STANDARD UNIT CONVERSION | |||||||
|---|---|---|---|---|---|---|---|
| Natural Gas Consumption | Diesel Consumption | Fuel Oil Consumption | Burner Capacity | PRIMARY AIR FAN AIR ATOMIZATION |
|||
| Max (Nm3/h) | Max (kg/h) | Max (kg/h) | Max (MW) | Max (kcal/h) | (Nm3/h) | mbar | |
| ECO-RO-2000 | 2.424 | 1.961 | 2.073 | 23,26 | 20.000.160 | 2300 | 53+Δp Boiler |
| US STANDARD UNIT CONVERSION | |||||||
|---|---|---|---|---|---|---|---|
| Natural Gas Consumption | Diesel Consumption | Fuel Oil Consumption | Burner Capacity | PRIMARY AIR FAN AIR ATOMIZATION |
|||
| Max (ft³/h) | Max (lb/h) | Max (lb/h) | Max (MMBtu/hr) | Max (kcal/h) | (ft³/h) | in. w.c. | |
| ECO-RO-2000 | 85,603.56 | 4,323.26 | 4,570.18 | 79.35 | 20,000,160 | 81,224.50 | 21.3 + ΔP Boiler |
