Monoblock Burners
Modulating Gas Burners
ECO 65 G C 3
- Modulating operation,
- Mechanical, pneumatic or electronic modulating control options,
- Ability to operate with natural gas and LPG fuel,
- Ability to operate at 300 mbar and 21 mbar gas pressure up to model ECO 55 GC 3,
- Wide thermal capacity adjustment range according to the heat requirement,
- Direct ignition and optional pilot ignition,
- Flame control with ignition and ionization electrode,
- Adequate gas pressure control with minimum gas pressurestat.
- Uniform fuel mixture with a unique combustion head with high combustion efficiency,
- Combustion air control with air pressurestat,
- Operation at low noise levels with its aluminum alloy, light body,
- Minimum friction losses on body and combustion nozzle,
- Combustion air flow adjustment with internal fan flap,
- Easy access to all parts without dismounting the burner from the boiler,
- Sliding flange for connection to different boiler types,
- Compact design requiring minimal maintenance,
- Environmentally-friendly with lower NOx and CO emissions.
| Burner Type | Capacity | Capacity | Natural Gas Consumption |
LPG Consumption | Fan Motor Power | Voltage at 50 Hz | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Minimum kcal/h | Maximum kcal/h | Minimum kW | Maximum kW | Minimum Nm³/h | Maximum Nm³/h | Minimum Nm³/h | Maximum Nm³/h | kW | VAC | |
| ECO 65 G C 3 | 430.000 | 3.010.000 | 500 | 3500 | 52,12 | 364,85 | 19,11 | 133,78 | 5,5 | 3N 400 |

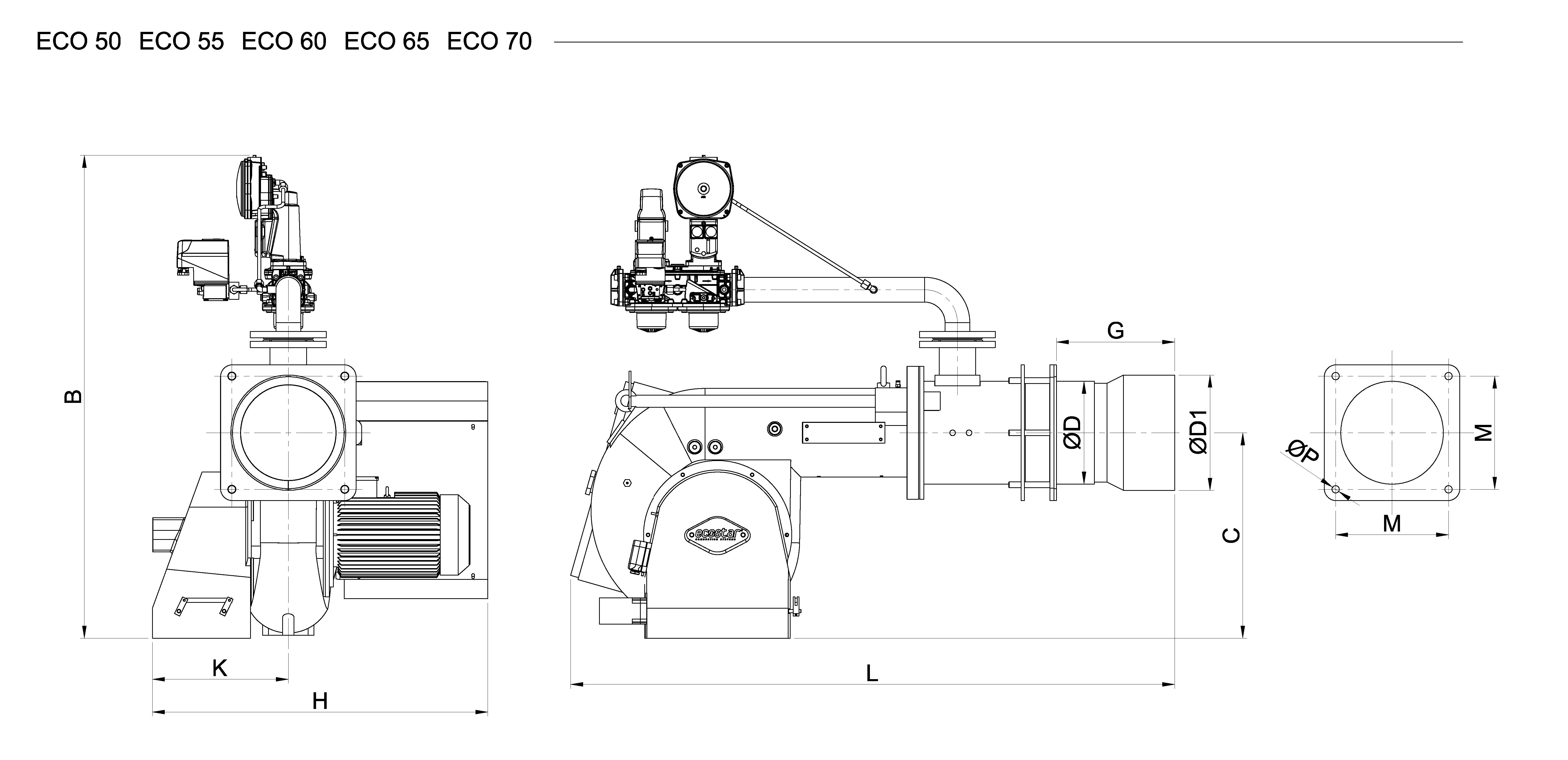

| * | L | Gmin | Gmax | H | K | B | C | ØP | M | ØD | ØD1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ECO 65 G C 3 | 1500 | 200 | 440 | 815 | 330 | 1185 | 510 | 18 | 275 | 250 | 280 |
*All dimensions in mm.
| SPECIFICATIONS | ECO 65 G C 3 |
|---|---|
| Control Type | O |
| Mechanical Proportional (21mbar) | |
| Mechanical Proportional (300 mbar) | |
| Pneumatic Proportional (21mbar) | |
| Pneumatic Proportional (300 mbar) | |
| Electronic Proportional (21mbar) | |
| Electronic Proportional (300 mbar) | |
| Air flow setting | SM |
| Adjustable flame tube extension | |
| Gas Valve | |
| Minimum gas processor | |
| Maximum gas processor | |
| Air processor | |
| Flame Control | İO |
| Ignition | DA |
| VPS Gas leak device | |
| Sliding boiler connection flange | |
| Service shaft | |
| Complies with TS EN 676+A2 and 2016/426/EC GAR | |
| Electrical protection class | IP40 |
: Not Included / N/A
: Optional
: Included / Available
1K: Single Stage
2K: Two Stage
O: Modulating
M: Manuel
SM: Servomotor
İO: Ionization
F: Photocell
DA: Direct Ignition
PA: Pilot Ignition
