Monoblock Burners
NG Series Gas Burners

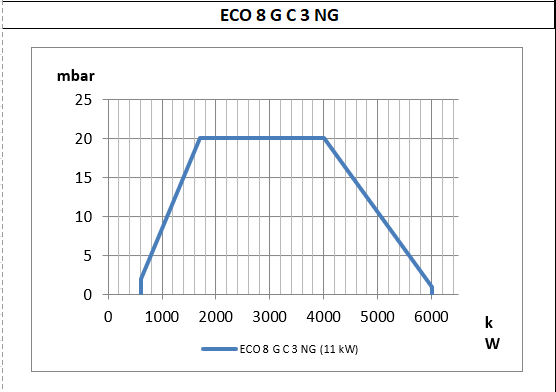

ECO 8 G C 3 NG
- Easy maintenance with hinged system without dismounting the burner from the boiler,
- Sliding flange for connection to different boiler types,
- Lower noise level with special muffler system,
- Early diminishing of error sources thanks to the plug-socket connection that allows minimizing the number of cable connections,
- Combustion cap adjustable to desired capacity,
- High combustion efficiency by providing optimum fuel-air mixture with fuel-air servo motors that can be adjusted with high precision,
- High performance fan,
- User-friendly operator panel,
- Optional CO/O2 (trim) system integration for combustion optimization,
- Adequate gas supply control with minimum gas pressurestat.
- Combustion air control with air pressurestat,
- Leak control with integrated gas leak controller,
- Pilot ignition system integrated into the gas valve without requiring an additional burner pilot line
(Standard for Eco 75 and above, optional for lower capacities.)
| Burner Type |
Capacity | Capacity | Natural Gas Comsuption | LPG Comsuption |
Fan Motor Power |
Gas Inlet Diameter |
Gas Valve | Main Supply |
Air Suction Type |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min. kcal/h | Max. kcal/h | Min. kW | Max. kW | Min. Nm³/h | Max. Nm³/h | Min. Nm³/h | Max. Nm³/h | kW | VAC | ||||
| ECO 8 G C 3 NG | 516.000 | 5.160.000 | 600 | 6.000 | 63 | 625 | 23 | 229 | 11 | DN65 | VGD 40,065 | 3N 400 | Sheet Metal |
| ECO 8 G C 3 NG | 516.000 | 5.160.000 | 600 | 6.000 | 63 | 625 | 23 | 229 | 11 | DN65 | MBE VB 65 | 3N 400 | Sheet Metal |
| * Low Calorific Value: LCV Natural Gas : 8250 kcal /Nm³ , LCV LPG : 22500 kcal /Nm³ | |||||||||||||
| * | L | Gmin | Gmax | H | K | B | C | ØP | M | ØD | ØD1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ECO 8 G C 3 NG | 1700 | - | 305 | 1320 | 720 | 1600 | 695 | 18 | 400 | 408 | - |
*All dimensions in mm.
| SPECIFICATIONS | ECO 8 G C 3 NG |
|---|---|
| Control Type | O |
| Mechanical Modulating (21mbar) | |
| Mechanical Modulating (300 mbar) | |
| Pneumatic Modulating (21mbar) | |
| Pneumatic Modulating (300 mbar) | |
| Electronic Modulating (21mbar) | |
| Electronic Modulating (300 mbar) | |
| Air flow adjustment | SM |
| Fuel flow adjustment | SM |
| Gas Valve | |
| Ignition | PA |
| Minimum gas pressure switch | |
| Maximum gas pressure switch | |
| Gas Leak Control | |
| Air pressure switch | |
| Flame Control | F |
| Hinged body for servicing purposes | |
| Different flame tube length | |
| O2-CO combustion management system connection | |
| Combustion air fan inverter connection | |
| Fuel preparation stations (Gas line) | |
| Complies with TS EN 676 A2 and 2016/426/EC GAR | |
| Electrical protection class | IP54 |
: Not Included / N/A
: Optional
: Included / Available
1K: Single Stage
2K: Two Stage
O: Modulating
M: Manuel
SM: Servomotor
İO: Ionization
F: Photocell
DA: Direct Ignition
PA: Pilot Ignition
