Modulating Light Oil Burners

Download Product Visual

Modulating operation,
Mechanical and electronic modulating control options,
Wide thermal capacity adjustment range according to the heat requirement,
Direct ignition and optional pilot ignition,
Flame control with ignition and photocell,
Uniform fuel mixture with a unique combustion head with high combustion efficiency,
Combustion air control with air pressurestat,
High efficiency operation thanks to air flow rate adjustment from both the suction and the barrel,
Operation at low noise levels with its aluminum alloy, light body,
Minimum friction losses on body and combustion nozzle,
Combustion air flow adjustment with internal fan flap,
Easy access to all parts without dismounting the burner from the boiler,
High pressure mechanical atomization at nozzle,
Sliding flange for connection to different boiler types,
Compact design requiring minimal maintenance.

Burner Type	Capacity		Capacity		Fuel Oil Consumption		Fan Motor Power	Fuel Pump Power	Voltage at 50 Hz
Burner Type		Min. kcal/h	Max. kcal/h	Min. kW	Max. kW	Min. kg/h	Max. kg/h	kW	kW	VAC
ECO 75 O (L) C 3	1.009.800	4.824.600	1167	5610	99,00	473,00	11	1,5	3N 400

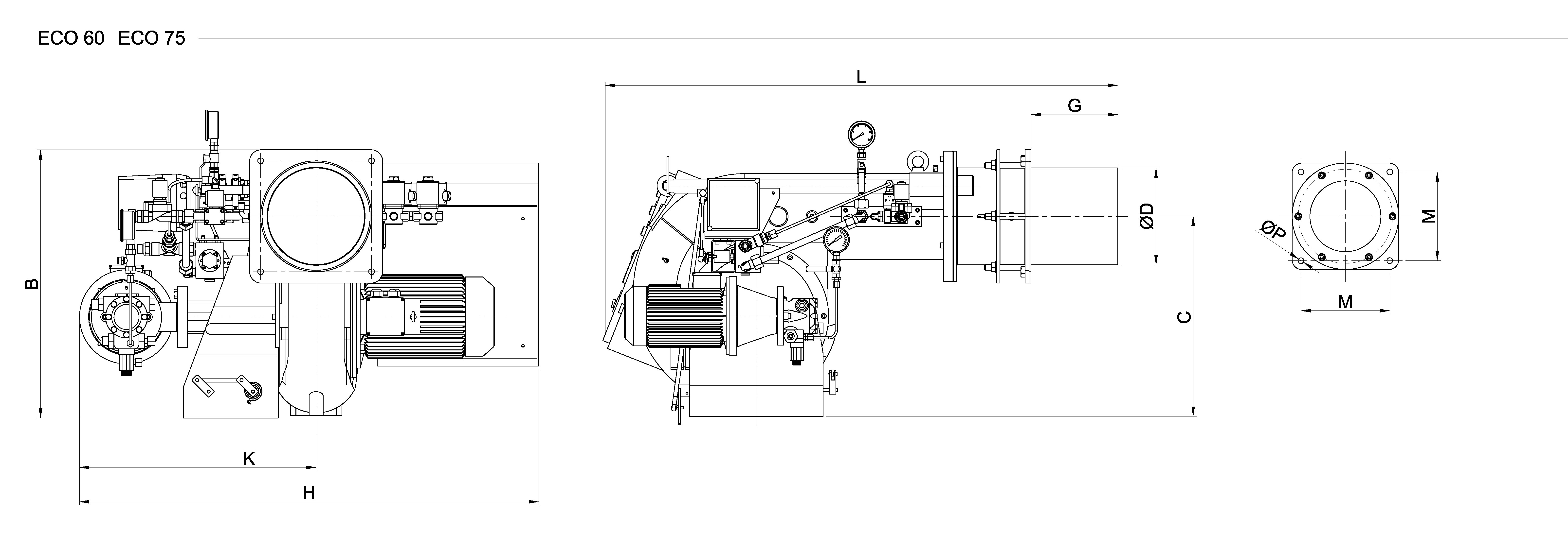

*	L	Gmin	Gmax	H	K	B	C	ØP	M	ØD	ØD1
ECO 75 O (L) C 3	1500	200	285	1200	580	730	525	22	335	300	-

*All dimensions in mm.

SPECIFICATIONS	ECO 70 O (L) C 3
Control Type	O
Mechanical Modulating
Electronic Modulating
Air flow adjustment	SM
Pilot ignition	DA
Pilot gas valve
Flame control	F
Liquid fuel pumps and fuel hoses
Handling Shaft for Servicing
Different flame tube length
O2-CO combustion management system connection
Combustion air fan inverter connection
Fuel Preparation Stations (Light Oil Station)
TSE EN267+A1 Burners-Compatibility for Liquid Fuels
CE Declaration of Conformity
Electrical protection class	IP54

: Not Included / N/A

: Optional

: Included / Available

1K: Single Stage

2K: Two Stage

O: Modulating

M: Manuel

SM: Servomotor

İO: Ionization

F: Photocell

DA: Direct Ignition

PA: Pilot Ignition
