Modulating Heavy Oil Burners

Download Product Visual

Modulating operation,
Mechanical and electronic modulating control options,
Wide thermal capacity adjustment range according to the heat requirement,
Direct ignition and optional pilot ignition,
Flame control with ignition and photocell,
Uniform fuel mixture with a unique combustion head with high combustion efficiency,
Combustion air control with air pressurestat,
Operation at low noise levels with its aluminum alloy, light body,
Minimum friction losses on body and combustion nozzle,
Combustion air flow adjustment with internal fan flap,
Easy access to all parts without dismounting the burner from the boiler,
High pressure mechanical atomization at nozzle,
Specially-designed, compact pre-heater, safety, operation and limiting thermostat
Sliding flange for connection to different boiler types,
Compact design requiring minimal maintenance.

Burner Type	Capacity		Capacity		Fuel Oil Consumption		Fan Motor Power	Fuel Pump Power	Fuel Heater	Voltage at 50 Hz
Burner Type		Minimum kcal/h	Maximum kcal/h	Minimum kW	Maximum kW	Minimum kg/h	Maximum kg/h	kW	kW	kW	VAC
ECO 70 O (S) C 3	916.750	3.502.950	1066	4070	95	363	7,5	1,5	2 x 9	3N 400

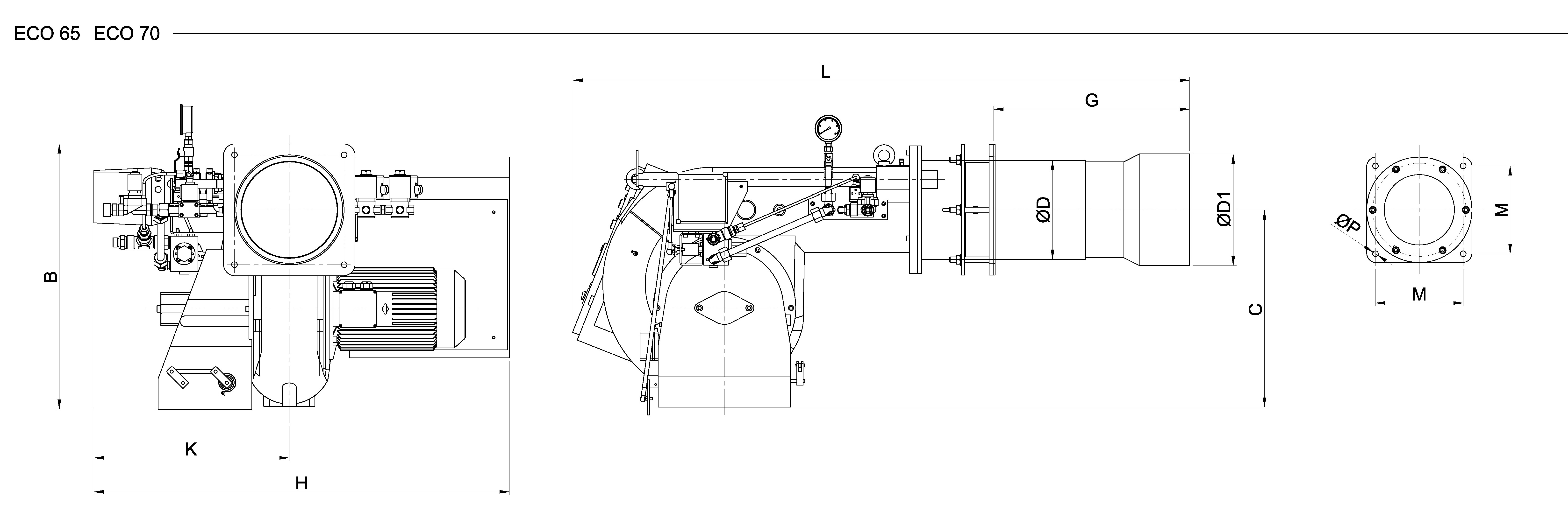

*	L	Gmin	Gmax	H	K	B	C	ØP	M	ØD	ØD1
ECO 70 O (S) C 3	1580	200	535	1100	550	670	510	18	275	250	280

*All dimensions in mm.

SPECIFICATIONS	ECO 70 O (S) C 3
Control Type	O
Mechanical Proportional
Electronic Proportional
Air flow setting	SM
Ignition	DA
Flame Control	F
Liquid fuel heating and pumping station
Liquid fuel hoses
Service shaft
Different flame tube length
O2-CO combustion management system connection
Combustion air fan inverter connection
Fuel Preparation Stations (Fuel Oil Station)
Complies with TS EN 676+A2 and 2016/426/EC GAR
CE declaration of conformity
Electrical protection class	IP54

: Not Included / N/A

: Optional

: Included / Available

1K: Single Stage

2K: Two Stage

O: Modulating

M: Manuel

SM: Servomotor

İO: Ionization

F: Photocell

DA: Direct Ignition

PA: Pilot Ignition
