Ecostar
NG + Gas Burners

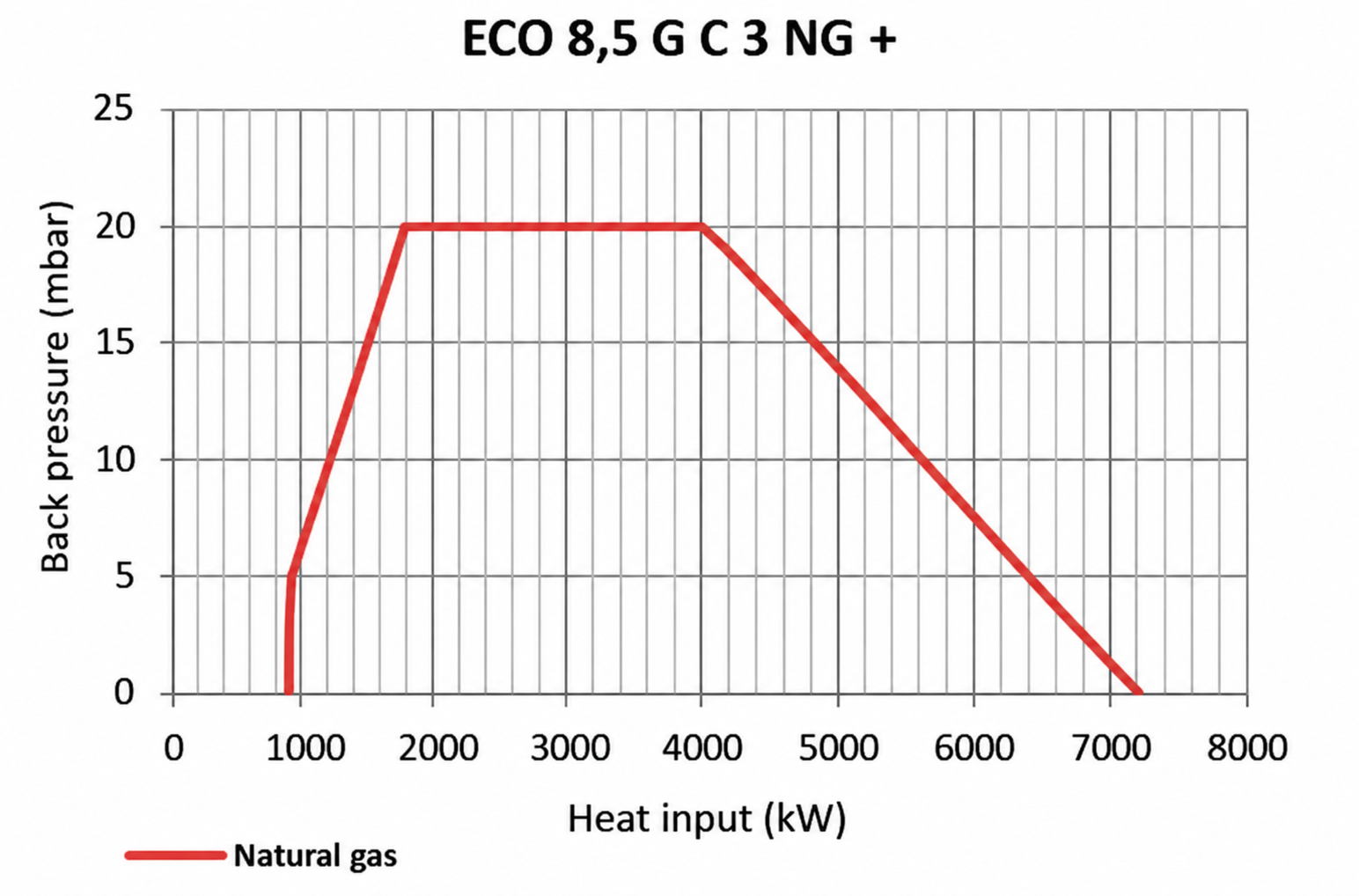

ECO 8,5 G C3 NG+
- Enhanced combustion efficiency with Low NOx and CO emissions,
- Compatibility with the combustion chamber via adjustable flame formation,
- Easy maintenance with a hinged system without the need to separate the burner from the boiler,
- Sliding flange for connection to different boiler types,
- Lower noise level with a specially designed silencer system,
- Reduced potential sources of error thanks to plug-and-socket connections that minimize cable connections,
- Adjustable combustion head according to the required capacity,
- High combustion efficiency by ensuring an optimum fuel-air mixture with highly precise fuel-air servo motors,
- High-performance fan,
- User-friendly operator panel,
- Optional CO/O2 (trim) system integration for combustion optimization,
- Minimum gas pressure switch for monitoring sufficient gas supply,
- Air pressure switch for monitoring combustion air,
- Leakage control with an integrated gas valve proving system,
- Pilot ignition system integrated into the gas valve without the need for an additional burner pilot line
(Standard for Eco 75 and above; optional for lower capacities.)
| Burner Type | Capacity | Capacity | Natural Gas Consumption | LPG Consumption | Fan Motor Power | Gas Train Pipe Diameter |
Valve Type | Voltage at 50 Hz | Air Intake Type | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min. kcal/h | Max. kcal/h | Min. kW | Max. kW | Min. Nm³/h | Max. Nm³/h | Min. Nm³/h | Max. Nm³/h | kW | VAC | ||||
| ECO 8,5 G C3 NG+ | 623.500 | 6.235.000 | 750 | 7.250 | 76 | 756 | 28 | 277 | 11 | DN 80 | VGD 40.080 | 3N 400 | Sheet Metal |
|
* Low Calorific Value: LCV Natural Gas : 8250 kcal /Nm³ , LCV LPG : 22500 kcal /Nm³ |
|||||||||||||
