Monoblock Burners
HP Series Electronic Modulating Gas Burners

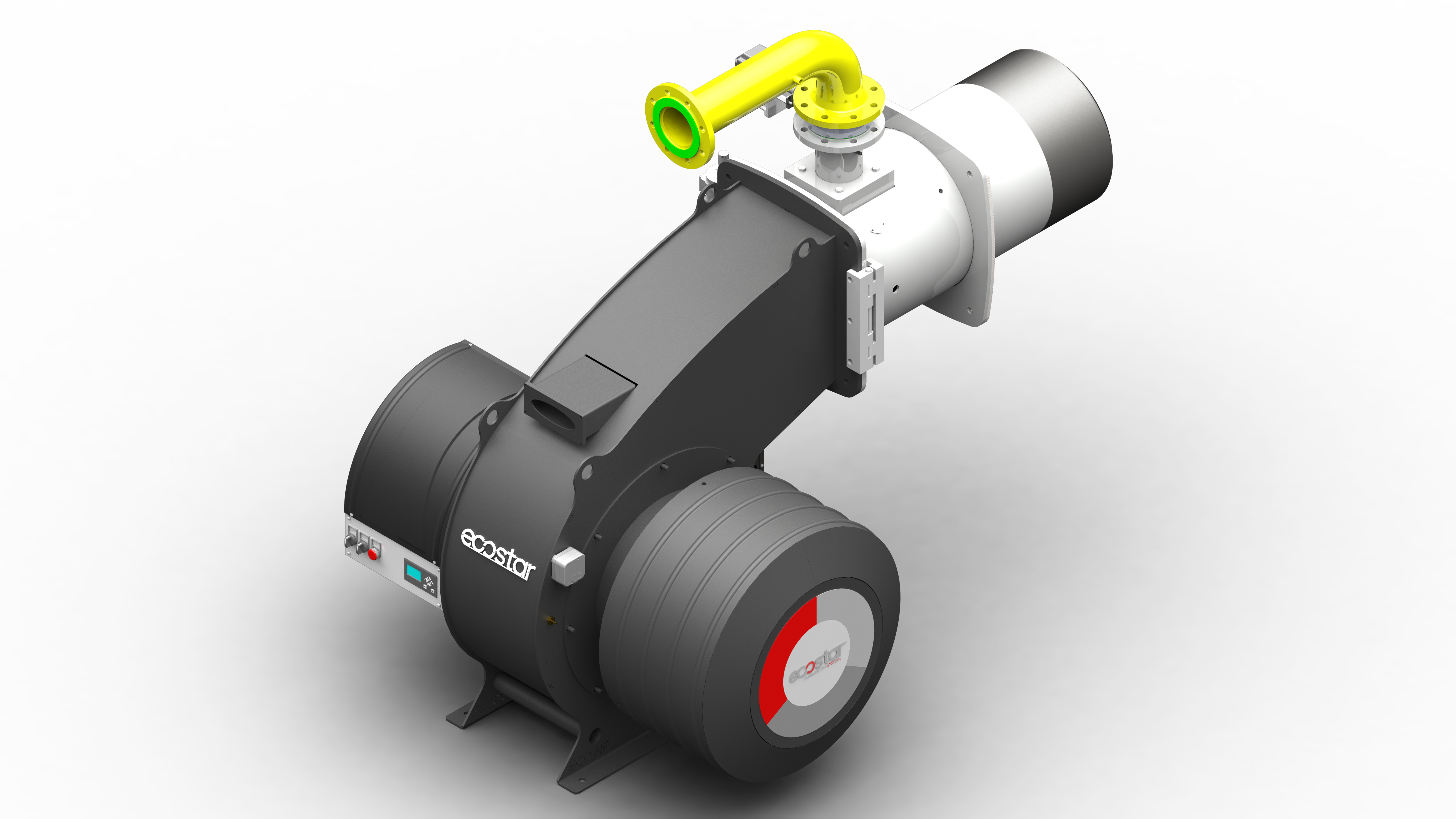

ECO 7000 HP GC 3
- Modulating operation,
- Mechanical, pneumatic or electronic modulating control option,
- Natural gas and LPG fuel usage,
- Operating possibility of 300 mbar and 21 mbar gas pressure,
- Wide thermal capacity range according to heat demand,
- Supply gas pressure control with minimum gas pressure switch,
- Combustion air control with air pressure switch,
- Sliding flange for different boiler types,
- Working at low noise levels with light aluminum alloy body,
- High combustion efficiency, uniform fuel and air mixing with original combustion head,
- Minimum friction losses throughout the body and combustion head,
- Flame control with ignition and ionization electrodes,
- Compact design with minimum maintenance,
- Easy access to all parts without dismantling the burner from the boiler,
- Direct ignition and optional pilot ignition,
- Environmentally friendly with low CO and NOx emissions.
- Working at low sound levels with the specially designed burner body,
- Ease of maintenance with the hinged system without the need to separate the burner from the boiler,
- lower sound level with special muffler system,
| Burner Type | Capacity | Capacity | Natural Gas Consumption | Fan Motor Power | Main Supply | Gaz Inlet Diameter | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Minimum kcal/h | Maximum kcal/h | Minimum kW | Maximum kW | Minimum Nm³/h | Maximum Nm³/h | kW | VAC | Gaz Valve | Gaz Inlet Diameter | |
| ECO 7000 HP GC 3 | 602.000 | 6.020.000 | 700 | 7000 | 72,97 | 729,70 | 11,0 | 3N 400 | VGD40.065 | DN65 |
| VGD40.080 | DN80 | |||||||||
| VGD40.100 | DN100 | |||||||||
| VGD40.125 | DN125 | |||||||||
