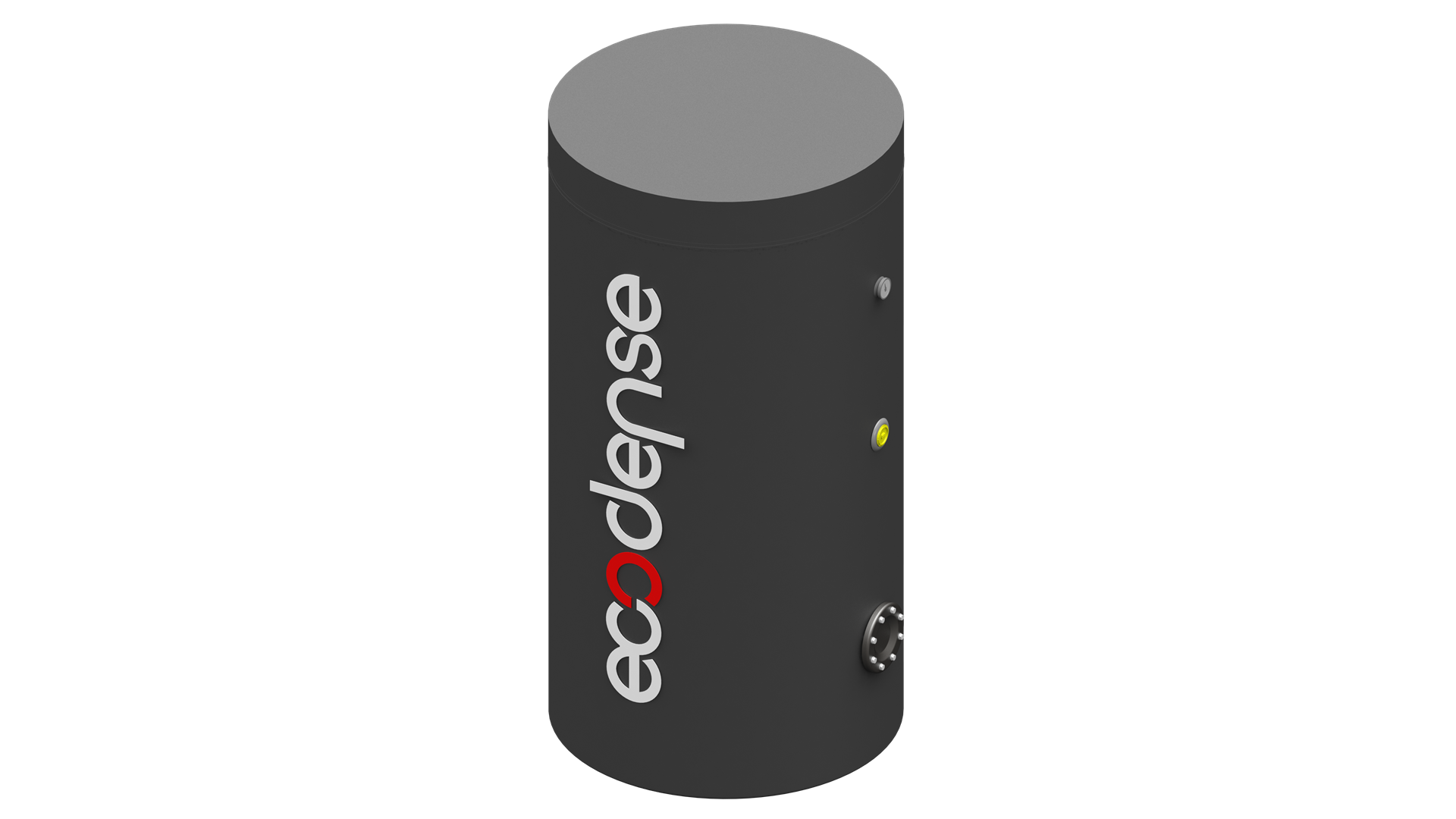

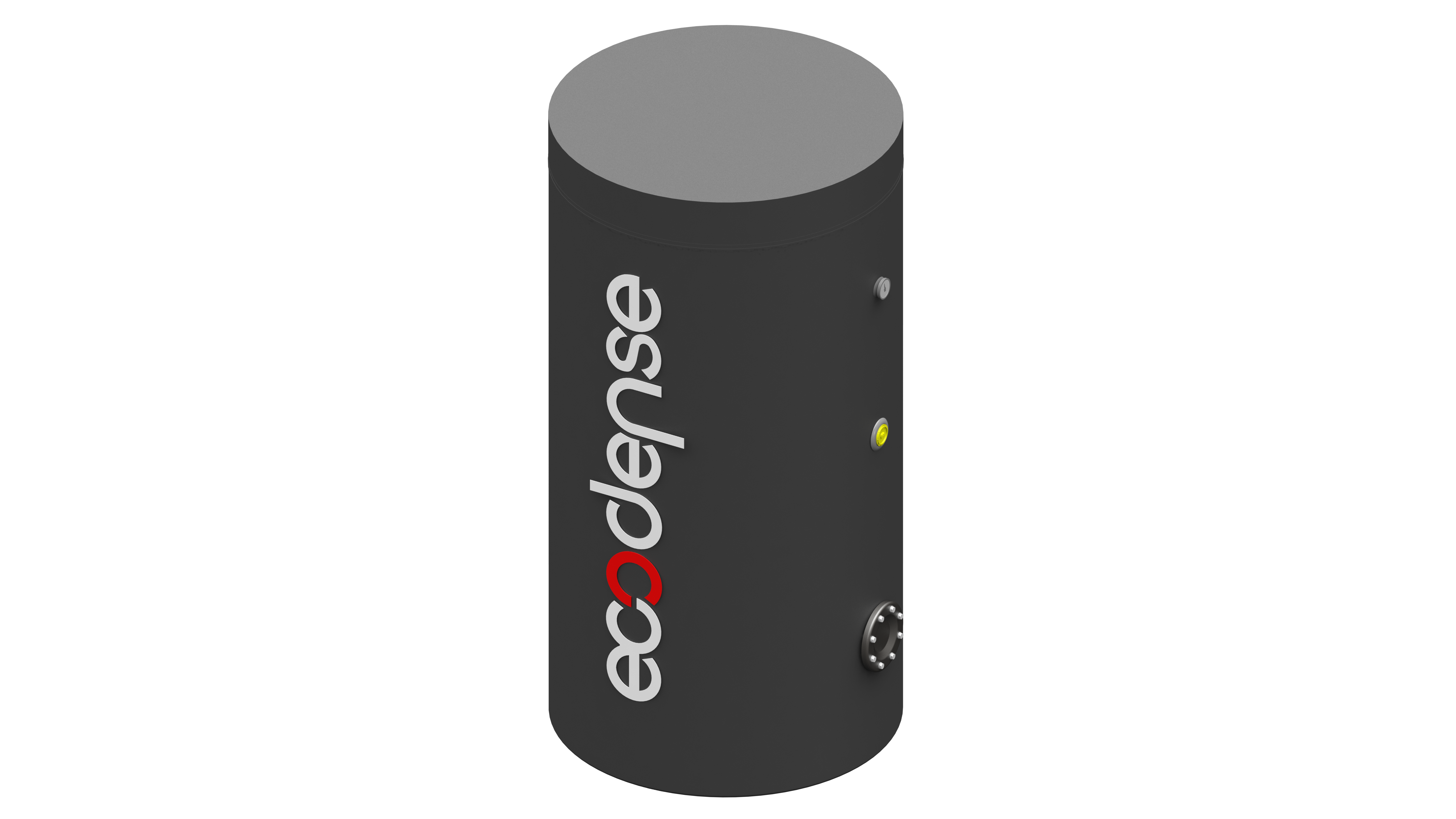

Water Storage Tank

Download Product Visual

• High efficiency thanks to 80 mm insulation thickness using soft polyurethane (foam) with a density of 18 kg/m³,

• WRAS (drinking water) certified titanium-reinforced enamel,

• Convenience thanks to the integrated cleaning flange in the tank and hygienic maintenance advantages,

• Integrated design with a thermometer,

• Maximum operating temperature of up to 95°C,

• 10 bar operating pressure / 13 bar test pressure,

• Uninterrupted hot water supply with an optional electric heater,

• Cathodic protection with a magnesium anode rod,

• Capacity options of 2500 and 3000 litres in 11 different widths: 100, 160, 200, 300, 500, 800, 1000, 1500, 2000,

• Suitable for use in heating systems such as condensing boilers, traditional burners, heat utilisation systems and pumps,

• Compact design ensures ease of use in any environment

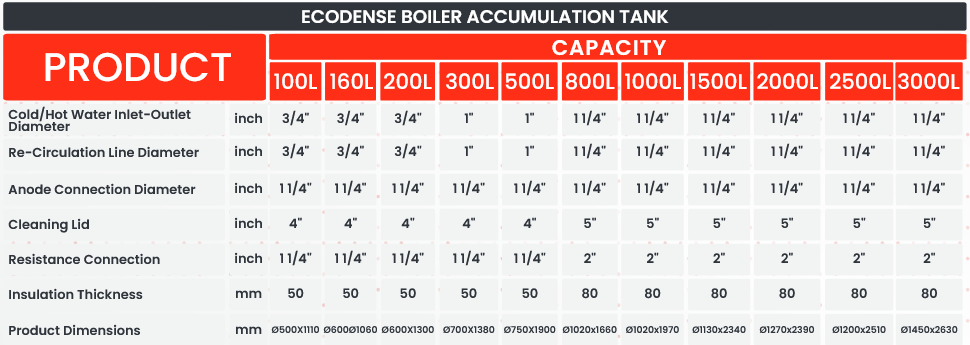

TECHNICAL SPECIFICATIONS	500	800	1000	1500	2000	2500	3000
Product Inner Diameter	700 mm	850 mm	850 mm	960 mm	1100 mm	1200 mm	1280 mm
Product Outer Diameter	800 mm	1010 mm	1010 mm	1120 mm	1260 mm	1360 mm	1440 mm
Height	1750 mm	1810 mm	2120 mm	2530 mm	2540 mm	2665 mm	2780 mm
Body Sheet Type	ST37
Body Sheet Thickness	4 mm	4 mm	4 mm	5 mm	5 mm	6 mm	6 mm
Dome Sheet Thickness	4 mm	4 mm	4 mm	5 mm	5 mm	6 mm	6 mm
Working Pressure	Max. 10 bar
Test Pressure	Max. 13 bar
Water Temperature	Max. 95°C
Internal Surface Coating	TS EN 12499 Titanium Enamel
Enamel Coating Thickness	250–450 microns
Cathodic Protection Component	TS EN 12499 Standard Magnesium Anode
Insulation Thickness	50 mm	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm
Insulation Density	18 kg/m³
Thermal Conductivity of Insulation	0.040 W/(m·K)
Type of Insulation	Soft Polyurethane
Anode Connection	1 1/4 inch
Thermometer Connection	1/2 inch
Cleaning Flange	5 inch
Recirculation Connection	1 inch	1 1/4 inch	1 1/4 inch	1 1/4 inch	1 1/4 inch	1 1/4 inch	1 1/4 inch
Cold-Hot Water Connection	1 inch	1 1/4 inch	1 1/4 inch	1 1/4 inch	1 1/4 inch	1 1/4 inch	1 1/4 inch
Heating Element Connection	1 1/4 inch	2 inch	2 inch	2 inch	2 inch	2 inch	2 inch
Product Dimensions	Ø800x1750 mm	Ø1010x1810 mm	Ø1010x2120 mm	Ø1120x2530 mm	Ø1260x2540 mm	Ø1360x2665 mm	Ø1440x2780 mm

CAPACITY	DESCRIPTION	500 LT	800 LT	1000 LT	1500 LT	2000 LT	2500 LT	3000 LT
A	Boiler Diameter (Including Insulation) (mm)	800	1010	1010	1120	1260	1360	1440
B	Height (mm)	1750	1810	2120	2532	2542	2666	2781
C1	Hot Water Outlet Height (mm)	1470	1522	1835	2208	2210	2315	2415
C2	Hot Water Outlet Diameter (in)	1‘	1 1/4’	1 1/4‘	1 1/4’	1 1/4"	1 1/4‘	1 1/4’
D1	Cold Water Inlet Height (mm)	387	437	437	473	480	500	515
D2	Cold Water Inlet Diameter (in)	1‘	1 1/4’	1 1/4‘	1 1/4’	1 1/4‘	1 1/4’	1 1/4"
E1	Hot Water Outlet Height (2) (mm)	1470	1522	1835	2208	2210	2315	2415
E2	Hot Water Outlet Diameter (2) (in)	1‘	1 1/4’	1 1/4"	1 1/4‘	1 1/4’	1 1/4‘	1 1/4’
F1	Cold Water Inlet Height (2) (mm)	387	437	437	473	480	500	515
F2	Cold Water Inlet Diameter (2) (in)	1‘	1 1/4’	1 1/4‘	1 1/4’	1 1/4‘	1 1/4’	1 1/4"
G1	Circulation Head (mm)	837	915	1082	1300	1250	1500	1460
G2	Circulation Diameter (in)	1‘	1 1/4’	1 1/4"	1 1/4‘	1 1/4’	1 1/4‘	1 1/4’
H1	Temperature Sensor Height (mm)	587	765	882	1100	1050	1250	1210
H2	Temperature Sensor Diameter (in)	1/2‘	1/2’	1/2‘	1/2’	1/2‘	1/2’	1/2"
I1	Thermometer Height (mm)	1370	1366	1682	2026	2023	2043	2058
I2	Thermometer Diameter (in)	1/2‘	1/2’	1/2‘	1/2’	1/2"	1/2‘	1/2’
J1	Resistor Height (mm)	984	915	1082	1300	1250	1500	1460
J2	Heating Element Diameter (in)	1 1/4"	2‘	2’	2‘	2’	2‘	2’
K1	Cleaning Cover Height (mm)	484	534	534	568	575	595	610
K2	Cleaning Cover Diameter	DN125	DN125	DN125	DN125	DN125	DN125	DN125
