Industrial Burners
Burner System Equipment
Diesel Fuel Station
Light Oil Transfer Station: The fuel transfer unit that provides the transfer of fuel from the main tank to the daily tank or from the daily tank to the light oil preparation station.

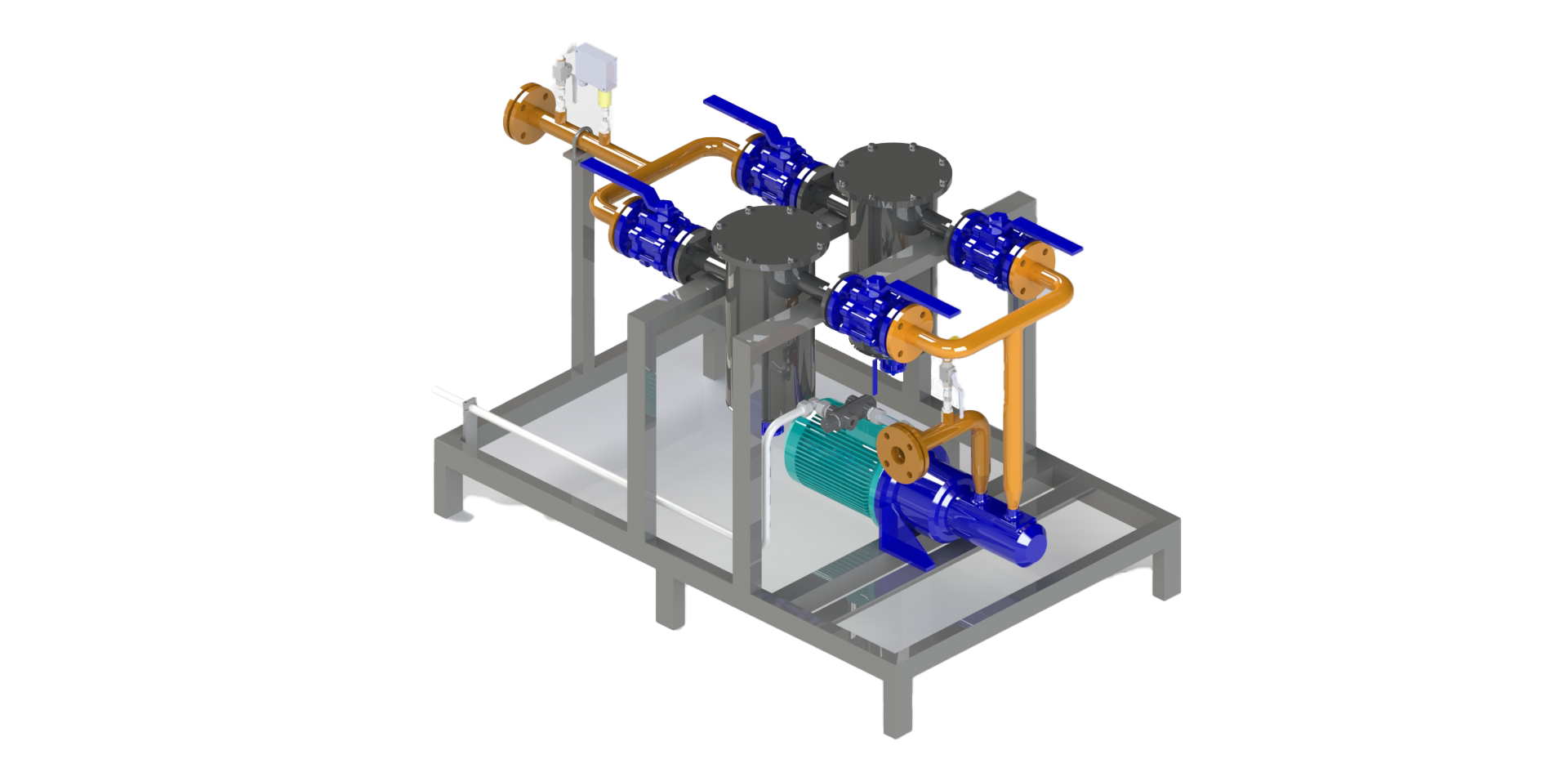

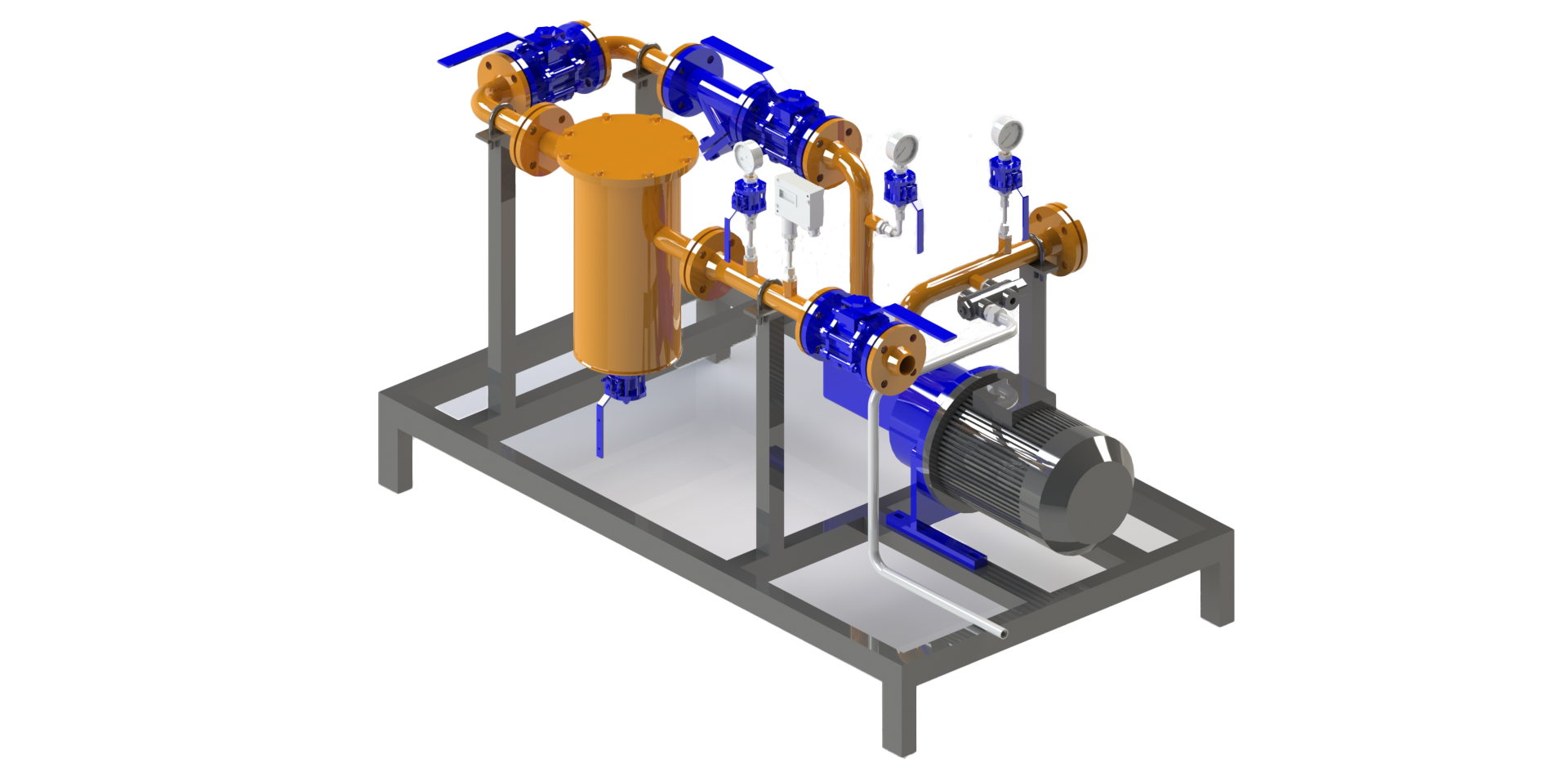

Light Oil Pumping Station: The fuel transfer unit that ensures fuel transfer to the burner at the appropriate pressure, flow rate, and cleanliness.
- Optionally, there may be single or spare filter-pump systems. The systems with spares provide maintenance and operation advantages.
- Please contact our sales department for specially designed fuel stations suitable for process needs.
Light oil station components;
- Liquid fuel filter
- Ball valve
- Oil pump
- Constant pressure valve
- Manometer
- Pressure transmitter
- Control panel
| MOTORINE TRANSFER STATION CAPACITY TABLE | |||
|---|---|---|---|
| TYPE | CAPACITY | TYPE | CAPACITY |
| lt/h | lt/h | ||
| MTI 200 | 200 | MTI 1800 | 1800 |
| MTI 400 | 400 | MTI 2000 | 2000 |
| MTI 600 | 600 | MTI 2500 | 2500 |
| MTI 800 | 800 | MTI 3000 | 3000 |
| MTI 1000 | 1000 | MTI 3500 | 3500 |
| MTI 1200 | 1200 | MTI 4000 | 4000 |
| MTI 1400 | 1400 | MTI 4500 | 4500 |
| MTI 1600 | 1600 | MTI 5000 | 5000 |
| MOTORINE PUMPING STATION CAPACITY TABLE | |||
|---|---|---|---|
| TYPE | CAPACITY | TYPE | CAPACITY |
| lt/h | lt/h | ||
| MPI 200 | 200 | MPI 1800 | 1800 |
| MPI 400 | 400 | MPI 2000 | 2000 |
| MPI 600 | 600 | MPI 2500 | 2500 |
| MPI 800 | 800 | MTI 3000 | 3000 |
| MPI 1000 | 1000 | MPI 3500 | 3500 |
| MPI 1200 | 1200 | MPI 4000 | 4000 |
| MPI 1400 | 1400 | MPI 4500 | 4500 |
| MPI 1600 | 1600 | MPI 5000 | 5000 |
