Condensing Boilers
Roof Top Series Condensing Boilers
Roof Top Series
- High efficiency with premix condensation technology and flame metal fiber coated steel burner,
- Energy saving by 5:1 modulation process,
- Different capacity options between 65 kW-450 kW with ECODENSE RT single/double/triple applications Dec.,
- Working with Natural gas and LPG,
- Easy hydraulic and gas circuit connections,
- Illuminated LCD panel for ease of use,
- Daily and weekly work schedule programming,
- Summer and winter periodic heat programs can be made,
- Working at low volume levels,
- Environmentally friendly with low NOx and CO emission rates,
- Easy installation, operation and maintenance possibility.
| TYPE | CAPACITY | NUMBER OF BOILER | GAS INLET PRESSURE | MAXIMUM WORKING PRESSURE |
|---|---|---|---|---|
| kW | - | mbar | bar | |
| ECODENSE RT-65 One | 65 | 1 | 21 | 6 |
| ECODENSE RT-80 One | 80 | 1 | 21 | 6 |
| ECODENSE RT-90 One | 90 | 1 | 21 | 6 |
| ECODENSE RT-100 One | 100 | 1 | 21 | 6 |
| ECODENSE RT-110 One | 110 | 1 | 21 | 6 |
| ECODENSE RT-115 One | 115 | 1 | 21 | 6 |
| ECODENSE RT-125 One | 125 | 1 | 21 | 6 |
| ECODENSE RT-150 One | 150 | 1 | 21 | 6 |
| ECODENSE RT-65 Twin | 130 | 2 | 21 | 6 |
| ECODENSE RT-80 Twin | 160 | 2 | 21 | 6 |
| ECODENSE RT-90 Twin | 180 | 2 | 21 | 6 |
| ECODENSE RT-100 Twin | 200 | 2 | 21 | 6 |
| ECODENSE RT-110 Twin | 220 | 2 | 21 | 6 |
| ECODENSE RT-115 Twin | 230 | 2 | 21 | 6 |
| ECODENSE RT-125 Twin | 250 | 2 | 21 | 6 |
| ECODENSE RT-150 Twin | 300 | 2 | 21 | 6 |

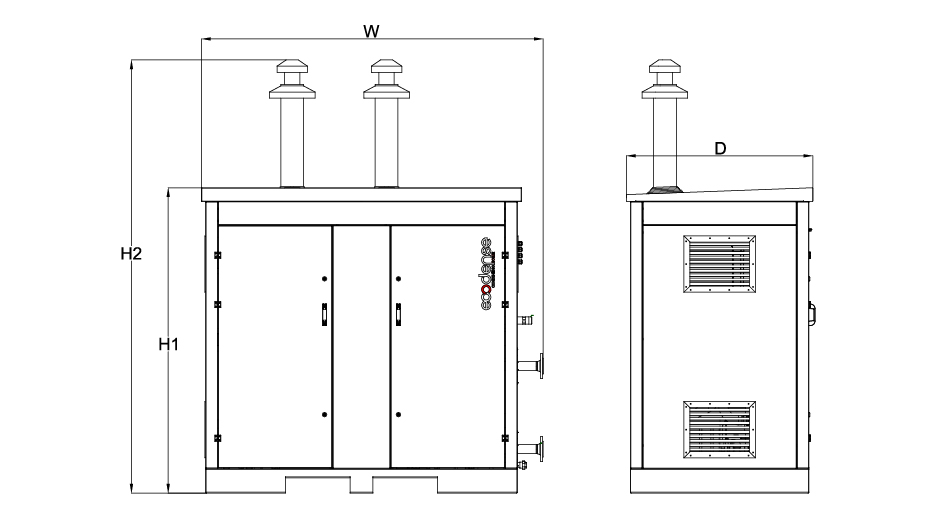

| MODEL | W (mm) |
H1 (mm) |
H2 (mm) |
D (mm) |
|---|---|---|---|---|
| RT-65 One | 1585 | 2000 | 2850 | 1230 |
| RT-80 One | 1585 | 2000 | 2850 | 1230 |
| RT-90 One | 1585 | 2000 | 2850 | 1230 |
| RT-100 One | 1585 | 2000 | 2850 | 1230 |
| RT-110 One | 1585 | 2000 | 2850 | 1230 |
| RT-115 One | 1585 | 2000 | 2850 | 1230 |
| RT-125 One | 1585 | 2000 | 2850 | 1230 |
| RT-150 One | 1585 | 2000 | 2850 | 1230 |
| RT-65 Twin | 2250 | 2000 | 2850 | 1230 |
| RT-80 Twin | 2250 | 2000 | 2850 | 1230 |
| RT-90 Twin | 2250 | 2000 | 2850 | 1230 |
| RT-100 Twin | 2250 | 2000 | 2850 | 1230 |
| RT-110 Twin | 2250 | 2000 | 2850 | 1230 |
| RT-115 Twin | 2250 | 2000 | 2850 | 1230 |
| RT-125 Twin | 2250 | 2000 | 2850 | 1230 |
| RT-150 Twin | 2250 | 2000 | 2850 | 1230 |
