Water Storage Tank

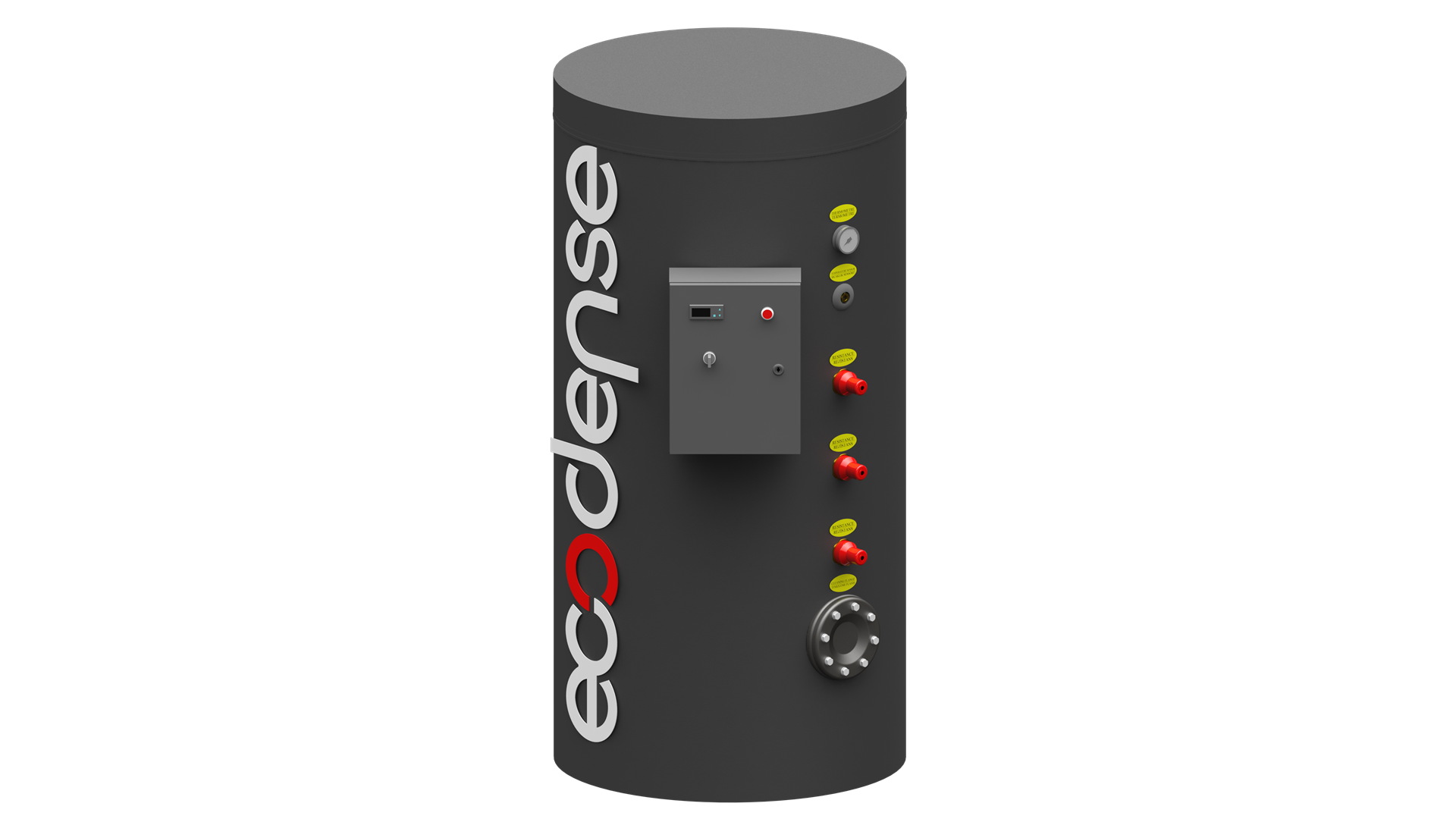

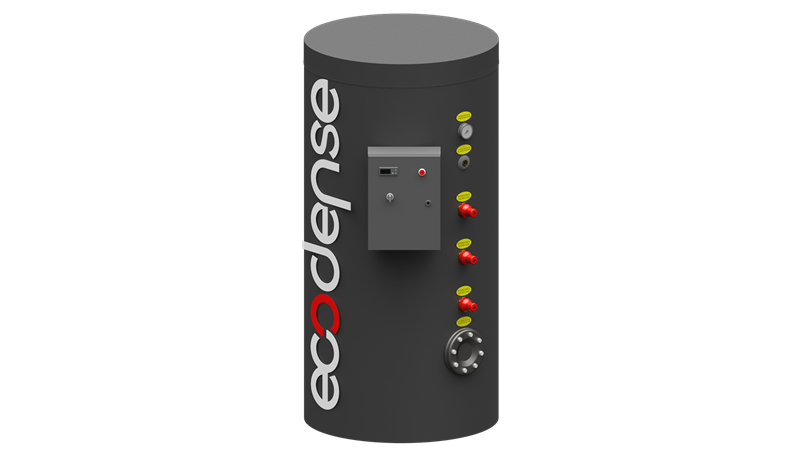

Electric Water Storage Tank
- Soft polyurethane (foam) with a density of 18 kg/m³
- High efficiency with an insulation thickness of 80 mm
- WRAS (drinking water) certified titanium-reinforced enamel,
- Convenience thanks to the integrated cleaning flange in the tank and hygienic maintenance advantages,
- Integrated design with a thermometer,
- Maximum operating temperature of up to 95°C,
- 10 bar operating pressure / 13 bar test pressure,
- Cathodic protection with a magnesium anode rod,
- 100, 160, 200, 300, 500, 800, 1000, 1500, 2000,
- 2500 and 3000 litre capacity options across 11 different widths,
- Compact design, easy to use in any environment, offering practical usage options,
| TECHNICAL SPECIFICATIONS | 500 | 800 | 1000 | 1500 | 2000 | 2500 | 3000 |
|---|---|---|---|---|---|---|---|
| Product Inner Diameter | 700 mm | 850 mm | 850 mm | 960 mm | 1100 mm | 1200 mm | 1280 mm |
| Product Outer Diameter | 800 mm | 1010 mm | 1010 mm | 1120 mm | 1260 mm | 1360 mm | 1440 mm |
| Height | 1750 mm | 1810 mm | 2120 mm | 2530 mm | 2540 mm | 2665 mm | 2780 mm |
| Body Sheet Type | ST37 | ||||||
| Body Sheet Thickness | 4 mm | 4 mm | 4 mm | 5 mm | 5 mm | 6 mm | 6 mm |
| Dome Sheet Thickness | 4 mm | 4 mm | 4 mm | 5 mm | 5 mm | 6 mm | 6 mm |
| Operating Pressure | Max. 10 bar | ||||||
| Test Pressure | Max. 13 bar | ||||||
| Water Temperature | Max. 95°C | ||||||
| Internal Surface Coating | TS EN 12499 Titanium Enamel | ||||||
| Enamel Coating Thickness | 250–450 microns | ||||||
| Cathodic Protection Component | TS EN 12499 Standard Magnesium Anode | ||||||
| Insulation Thickness | 50 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Insulation Density | 18 kg/m³ | ||||||
| Thermal Conductivity of Insulation | 0.040 W/(m·K) | ||||||
| Type of Insulation | Soft Polyurethane | ||||||
| Anode Connection | 1 1/4 inch | ||||||
| Thermometer Connection | 1/2 inch | ||||||
| Cleaning Flange | 5 inch | ||||||
| Recirculation Connection | 1 inch | 1 1/4 inch | 1 1/4 inch | 1 1/4 inch | 1 1/4 inch | 1 1/4 inch | 1 1/4 inch |
| Heating Element Connection | 1 1/2 inch | 1 1/2 inch | 1 1/2 inch | 1 1/2 inch | 1 1/2 inch | 1 1/2 inch | 1 1/2 inch |
| Cold-Hot Water Connection | 1 inch | 1 1/4 inch | 1 1/4 inch | 1 1/4 inch | 1 1/4 inch | 1 1/4 inch | 1 1/4 inch |
| Product Dimensions | Ø800x1750 mm | Ø1010x1810 mm | Ø1010x2120 mm | Ø1120x2530 mm | Ø1260x2540 mm | Ø1360x2665 mm | Ø1440x2780 mm |
| Heating Capacity | 2x10 kW | 2x15 kW | 3x15 kW | ||||
| CAPACITY | DESCRIPTION | 500 LT | 800 LT | 1000 LT | 1500 LT | 2000 LT | 2500 LT | 3000 LT |
|---|---|---|---|---|---|---|---|---|
| A | Boiler Diameter (Including Insulation) (mm) | 800 | 1010 | 1010 | 1120 | 1260 | 1360 | 1440 |
| B | Height (mm) | 1750 | 1810 | 2120 | 2532 | 2542 | 2666 | 2781 |
| C1 | Hot Water Outlet Height (mm) | 1470 | 1522 | 1835 | 2208 | 2210 | 2315 | 2415 |
| C2 | Hot Water Outlet Diameter (in) | 1‘ | 1 1/4’ | 1 1/4‘ | 1 1/4’ | 1 1/4‘ | 1 1/4’ | 1 1/4" |
| D1 | Cold Water Inlet Height (mm) | 387 | 437 | 437 | 473 | 480 | 500 | 515 |
| D2 | Cold Water Inlet Diameter (in) | 1" | 1 1/4‘ | 1 1/4’ | 1 1/4‘ | 1 1/4’ | 1 1/4‘ | 1 1/4’ |
| G1 | Circulation Head (mm) | 837 | 915 | 1082 | 1300 | 1250 | 1500 | 1460 |
| G2 | Circulation Diameter (in) | 1" | 1 1/4‘ | 1 1/4’ | 1 1/4‘ | 1 1/4’ | 1 1/4‘ | 1 1/4’ |
| H1 | Temperature Sensor Height (mm) | 587 | 765 | 882 | 1100 | 1050 | 1250 | 1210 |
| H2 | Temperature Sensor Diameter (in) | 1/2‘ | 1/2’ | 1/2‘ | 1/2’ | 1/2‘ | 1/2’ | 1/2" |
| J1 | Heating Element Height (mm) | 984 | 915 | 1082 | 1300 | 1250 | 1500 | 1460 |
| J2 | Resistor Diameter (in) | 1 1/4‘ | 2’ | 2‘ | 2’ | 2‘ | 2’ | 2" |
| K1 | Cleaning Cover Height (mm) | 484 | 534 | 534 | 568 | 575 | 595 | 610 |
| K2 | Cleaning Cover Diameter | DN125 | DN125 | DN125 | DN125 | DN125 | DN125 | DN125 |
