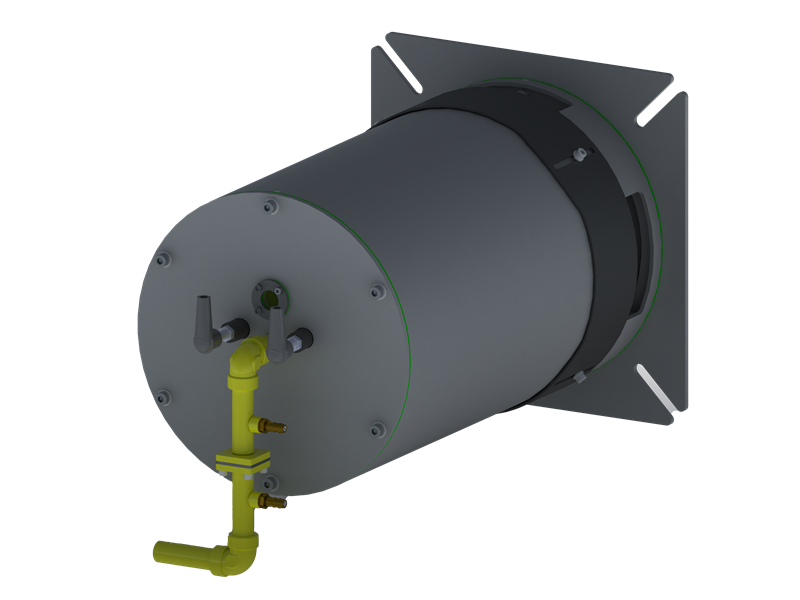

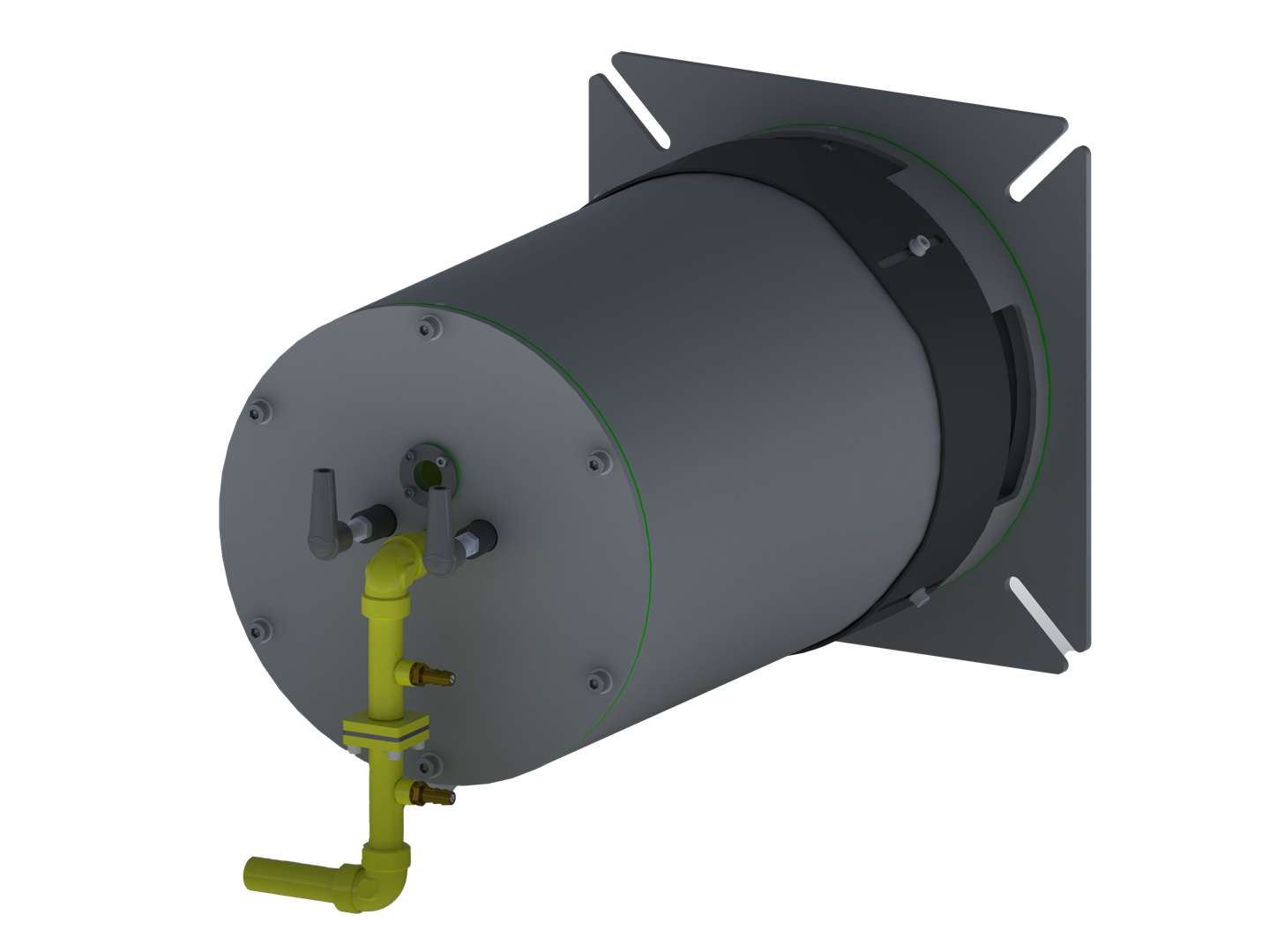

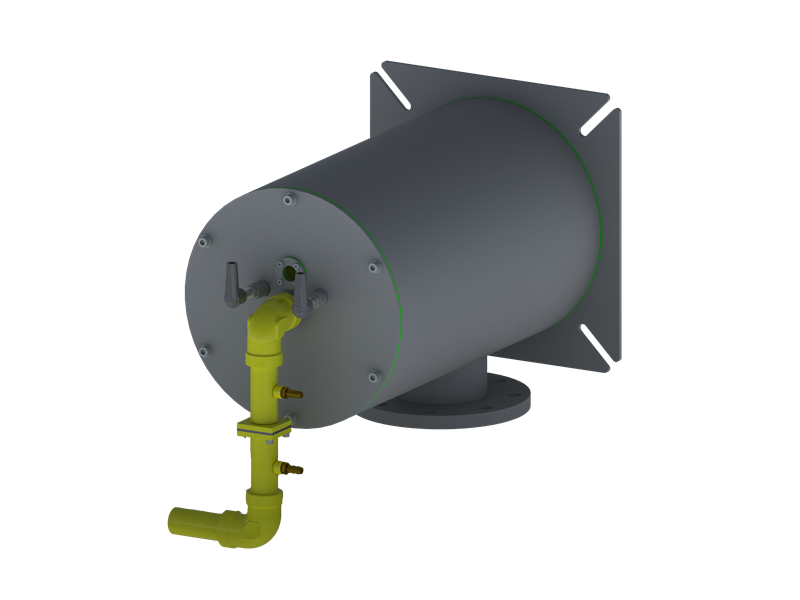

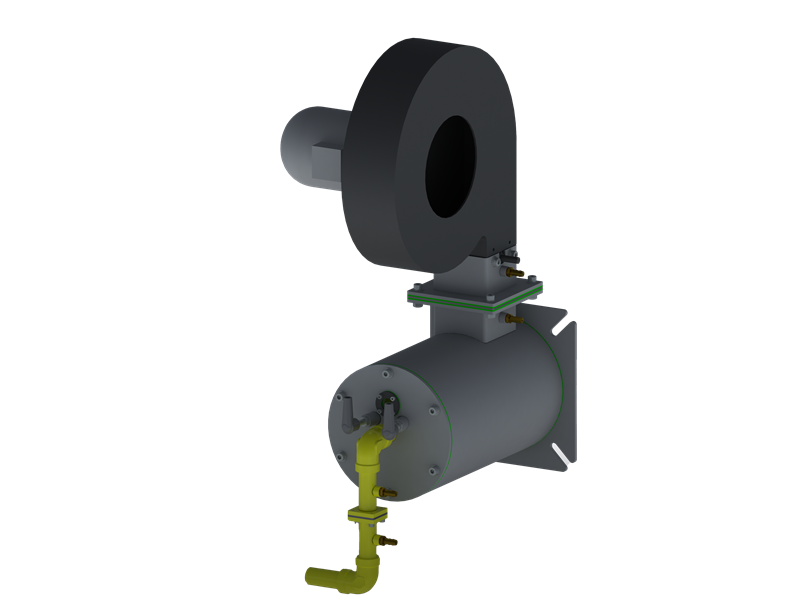

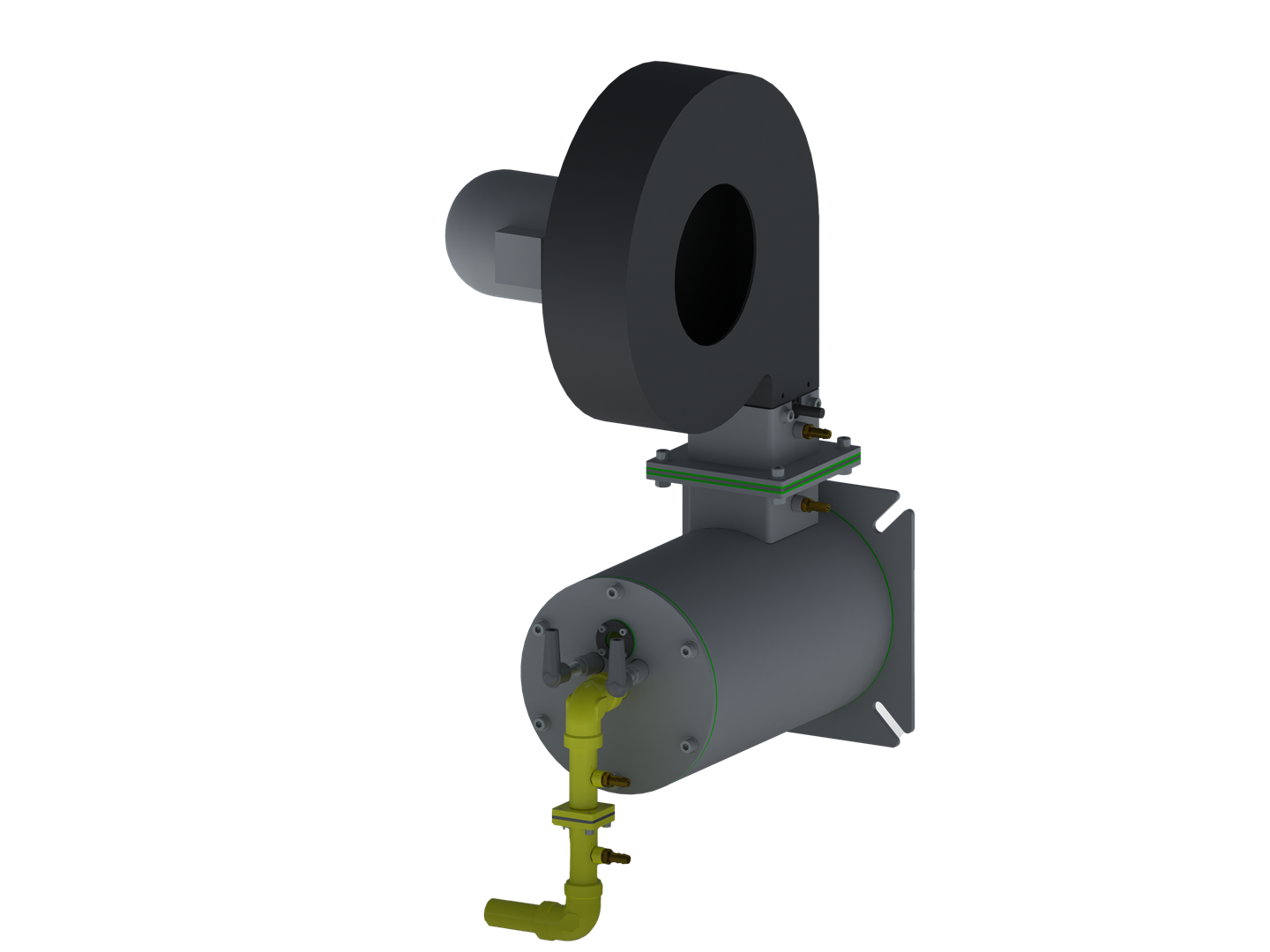

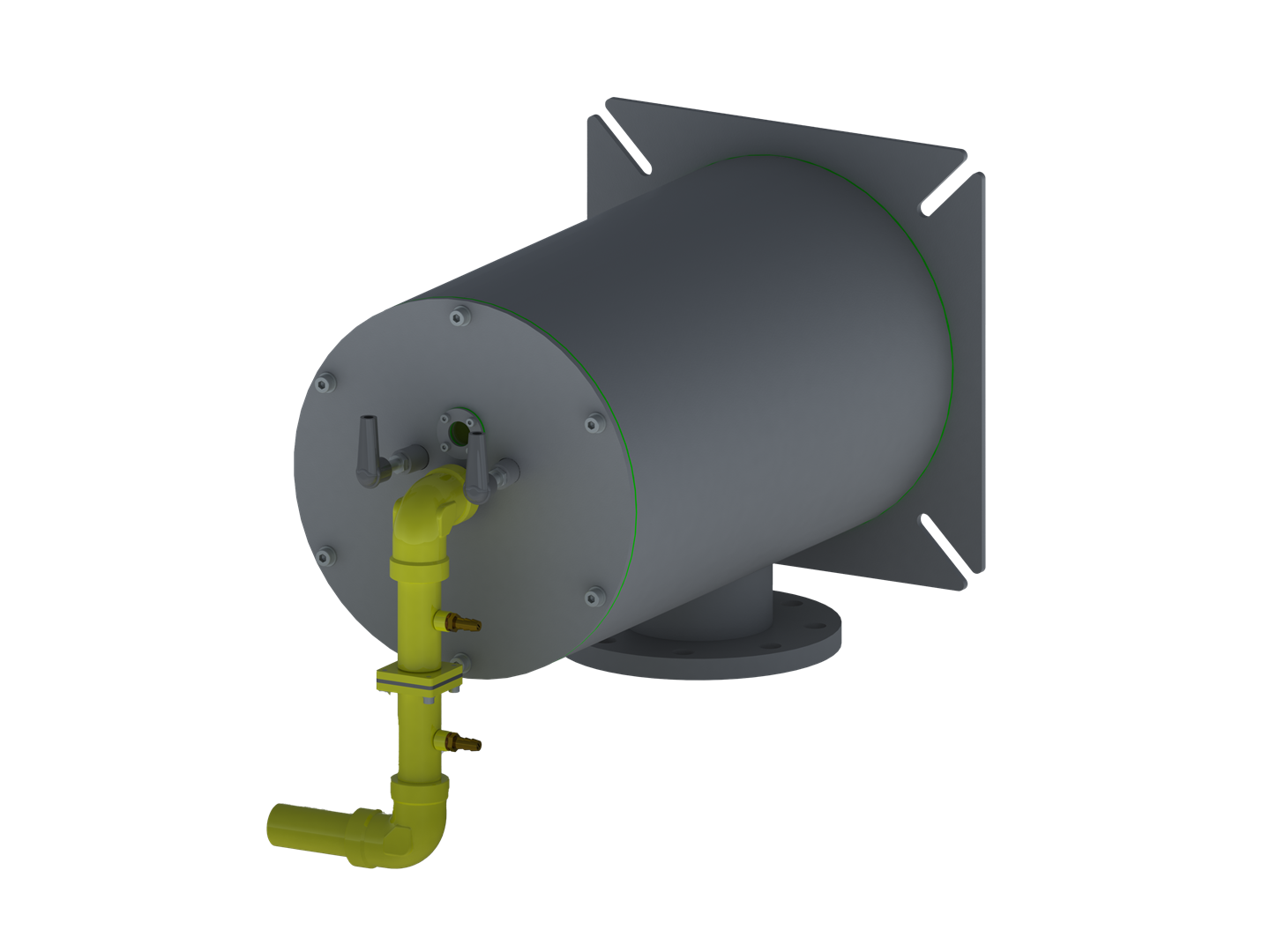

Daldırma Tip Yakıcı Serisi
Uygulamalar
Kullanım Alanları
ECO-DIP-LI Serisi Daldırma Tip Yakıcılar | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
ÜRÜN TİPİ | ÜRÜN | MİNİMUM KAPASİTE (kW) | MAKSİMUM KAPASİTESİ (kW) | NOMİNAL ÇAP | BORU ÇAPI (NPS) | A | B (Ø) | C | D (Ø) | E | F |
DIP-1 | ECO-DIP LI-0036 | 14,4 | 36 | DN 50 | 2" | 432 | 210 | 250 | 250 | 12,5 | 1/4" |
ECO-DIP LI-0045 | 18 | 45 | DN 50 | 2" | 432 | 210 | 250 | 250 | 12,5 | 1/4" | |
DIP-2 | ECO-DIP LI-0075 | 30 | 75 | DN 65 | 2 1/2" | 512 | 255 | 300 | 300 | 12,5 | 1/2" |
ECO-DIP LI-0090 | 36 | 90 | DN 80 | 3" | 512 | 255 | 300 | 300 | 12,5 | 1/2" | |
ECO-DIP LI-0120 | 48 | 120 | DN 100 | 4" | 512 | 255 | 300 | 300 | 12,5 | 1/2" | |
DIP-3 | ECO-DIP LI-0200 | 80 | 200 | DN 125 | 5" | 592 | 300 | 350 | 350 | 12,5 | 3/4" |
ECO-DIP LI-0300 | 120 | 300 | DN 150 | 6" | 592 | 300 | 350 | 350 | 12,5 | 3/4" | |
DIP-4 | ECO-DIP LI-0500 | 200 | 500 | DN 200 | 8" | 672 | 345 | 400 | 400 | 12,5 | 1 1/4" |
ECO-DIP LI-0800 | 320 | 800 | DN 250 | 10" | 672 | 345 | 400 | 400 | 12,5 | 1 1/4" | |
DIP-5 | ECO-DIP LI-1100 | 440 | 1100 | DN 250 | 10" | 752 | 390 | 450 | 450 | 12,5 | 2" |
ECO-DIP LI-1600 | 640 | 1600 | DN 300 | 12" | 752 | 390 | 450 | 450 | 12,5 | 2" |
ECO-DIP-HI Serisi Daldırma Tip Yakıcılar | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
ÜRÜN TİPİ | ÜRÜN | MİNİMUM KAPASİTE (kW) | MAKSİMUM KAPASİTESİ (kW) | NOMİNAL ÇAP | BORU ÇAPI (NPS) | A | B (Ø) | C | D (Ø) | E | F |
DIP-1 | ECO-DIP HI-0036 | 14,4 | 36 | DN 50 | 2" | 432 | 210 | 250 | 250 | 12,5 | 1/4" |
ECO-DIP HI-0045 | 18 | 45 | DN 50 | 2" | 432 | 210 | 250 | 250 | 12,5 | 1/4" | |
DIP-2 | ECO-DIP HI-0075 | 30 | 75 | DN 65 | 2 1/2" | 512 | 255 | 300 | 300 | 12,5 | 1/2" |
ECO-DIP HI-0090 | 36 | 90 | DN 80 | 3" | 512 | 255 | 300 | 300 | 12,5 | 1/2" | |
ECO-DIP HI-0120 | 48 | 120 | DN 100 | 4" | 512 | 255 | 300 | 300 | 12,5 | 1/2" | |
DIP-3 | ECO-DIP HI-0200 | 80 | 200 | DN 125 | 5" | 592 | 300 | 350 | 350 | 12,5 | 3/4" |
ECO-DIP HI-0300 | 120 | 300 | DN 150 | 6" | 592 | 300 | 350 | 350 | 12,5 | 3/4" | |
DIP-4 | ECO-DIP HI-0500 | 200 | 500 | DN 200 | 8" | 672 | 345 | 400 | 400 | 12,5 | 1 1/4" |
ECO-DIP HI-0800 | 320 | 800 | DN 250 | 10" | 672 | 345 | 400 | 400 | 12,5 | 1 1/4" | |
DIP-5 | ECO-DIP HI-1100 | 440 | 1100 | DN 250 | 10" | 752 | 390 | 450 | 450 | 12,5 | 2" |
ECO-DIP HI-1600 | 640 | 1600 | DN 300 | 12" | 752 | 390 | 450 | 450 | 12,5 | 2" |
ECO-DIP-LE Serisi Daldırma Tip Yakıcılar | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
ÜRÜN TİPİ | ÜRÜN | MİNİMUM KAPASİTE (kW) | MAKSİMUM KAPASİTESİ (kW) | NOMİNAL ÇAP | BORU ÇAPI (NPS) | A | B (Ø) | C | D (Ø) | E | F |
DIP-1 | ECO-DIP LE-0036 | 14,4 | 36 | DN 50 | 2" | 432 | 210 | 250 | 250 | 12,5 | 1/4" |
ECO-DIP LE-0045 | 18 | 45 | DN 50 | 2" | 432 | 210 | 250 | 250 | 12,5 | 1/4" | |
DIP-2 | ECO-DIP LE-0075 | 30 | 75 | DN 65 | 2 1/2" | 512 | 255 | 300 | 300 | 12,5 | 1/2" |
ECO-DIP LE-0090 | 36 | 90 | DN 80 | 3" | 512 | 255 | 300 | 300 | 12,5 | 1/2" | |
ECO-DIP LE-0120 | 48 | 120 | DN 100 | 4" | 512 | 255 | 300 | 300 | 12,5 | 1/2" | |
DIP-3 | ECO-DIP LE-0200 | 80 | 200 | DN 125 | 5" | 592 | 300 | 350 | 350 | 12,5 | 3/4" |
ECO-DIP LE-0300 | 120 | 300 | DN 150 | 6" | 592 | 300 | 350 | 350 | 12,5 | 3/4" | |
DIP-4 | ECO-DIP LE-0500 | 200 | 500 | DN 200 | 8" | 672 | 345 | 400 | 400 | 12,5 | 1 1/4" |
ECO-DIP LE-0800 | 320 | 800 | DN 250 | 10" | 672 | 345 | 400 | 400 | 12,5 | 1 1/4" | |
DIP-5 | ECO-DIP LE-1100 | 440 | 1100 | DN 250 | 10" | 752 | 390 | 450 | 450 | 12,5 | 2" |
ECO-DIP LE-1600 | 640 | 1600 | DN 300 | 12" | 752 | 390 | 450 | 450 | 12,5 | 2" |
ECO-DIP-HE Serisi Daldırma Tip Yakıcılar | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
ÜRÜN TİPİ | ÜRÜN | MİNİMUM KAPASİTE (kW) | MAKSİMUM KAPASİTESİ (kW) | NOMİNAL ÇAP | BORU ÇAPI (NPS) | A | B (Ø) | C | D (Ø) | E | F |
DIP-1 | ECO-DIP HE-0036 | 14,4 | 36 | DN 50 | 2" | 432 | 210 | 250 | 250 | 12,5 | 1/4" |
ECO-DIP HE-0045 | 18 | 45 | DN 50 | 2" | 432 | 210 | 250 | 250 | 12,5 | 1/4" | |
DIP-2 | ECO-DIP HE-0075 | 30 | 75 | DN 65 | 2 1/2" | 512 | 255 | 300 | 300 | 12,5 | 1/2" |
ECO-DIP HE-0090 | 36 | 90 | DN 80 | 3" | 512 | 255 | 300 | 300 | 12,5 | 1/2" | |
ECO-DIP HE-0120 | 48 | 120 | DN 100 | 4" | 512 | 255 | 300 | 300 | 12,5 | 1/2" | |
DIP-3 | ECO-DIP HE-0200 | 80 | 200 | DN 125 | 5" | 592 | 300 | 350 | 350 | 12,5 | 3/4" |
ECO-DIP HE-0300 | 120 | 300 | DN 150 | 6" | 592 | 300 | 350 | 350 | 12,5 | 3/4" | |
DIP-4 | ECO-DIP HE-0500 | 200 | 500 | DN 200 | 8" | 672 | 345 | 400 | 400 | 12,5 | 1 1/4" |
ECO-DIP HE-0800 | 320 | 800 | DN 250 | 10" | 672 | 345 | 400 | 400 | 12,5 | 1 1/4" | |
DIP-5 | ECO-DIP HE-1100 | 440 | 1100 | DN 250 | 10" | 752 | 390 | 450 | 450 | 12,5 | 2" |
ECO-DIP HE-1600 | 640 | 1600 | DN 300 | 12" | 752 | 390 | 450 | 450 | 12,5 | 2" |
ECO-DIP-LV Serisi Daldırma Tip Yakıcılar | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
ÜRÜN TİPİ | ÜRÜN | MİNİMUM KAPASİTE (kW) | MAKSİMUM KAPASİTESİ (kW) | NOMİNAL ÇAP | BORU ÇAPI (NPS) | A | B (Ø) | C | D (Ø) | E | F |
DIP-1 | ECO-DIP LV-0036 | 14,4 | 36 | DN 50 | 2" | 432 | 210 | 250 | 250 | 12,5 | 1/4" |
ECO-DIP LV-0045 | 18 | 45 | DN 50 | 2" | 432 | 210 | 250 | 250 | 12,5 | 1/4" | |
DIP-2 | ECO-DIP LV-0075 | 30 | 75 | DN 65 | 2 1/2" | 512 | 255 | 300 | 300 | 12,5 | 1/2" |
ECO-DIP LV-0090 | 36 | 90 | DN 80 | 3" | 512 | 255 | 300 | 300 | 12,5 | 1/2" | |
ECO-DIP LV-0120 | 48 | 120 | DN 100 | 4" | 512 | 255 | 300 | 300 | 12,5 | 1/2" | |
DIP-3 | ECO-DIP LV-0200 | 80 | 200 | DN 125 | 5" | 592 | 300 | 350 | 350 | 12,5 | 3/4" |
ECO-DIP LV-0300 | 120 | 300 | DN 150 | 6" | 592 | 300 | 350 | 350 | 12,5 | 3/4" | |
DIP-4 | ECO-DIP LV-0500 | 200 | 500 | DN 200 | 8" | 672 | 345 | 400 | 400 | 12,5 | 1 1/4" |
ECO-DIP LV-0800 | 320 | 800 | DN 250 | 10" | 672 | 345 | 400 | 400 | 12,5 | 1 1/4" | |
DIP-5 | ECO-DIP LV-1100 | 440 | 1100 | DN 250 | 10" | 752 | 390 | 450 | 450 | 12,5 | 2" |
ECO-DIP LV-1600 | 640 | 1600 | DN 300 | 12" | 752 | 390 | 450 | 450 | 12,5 | 2" |
ECO-DIP-HV Serisi Daldırma Tip Yakıcılar | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
ÜRÜN TİPİ | ÜRÜN | MİNİMUM KAPASİTE (kW) | MAKSİMUM KAPASİTESİ (kW) | NOMİNAL ÇAP | BORU ÇAPI (NPS) | A | B (Ø) | C | D (Ø) | E | F |
DIP-1 | ECO-DIP HV-0036 | 14,4 | 36 | DN 50 | 2" | 432 | 210 | 250 | 250 | 12,5 | 1/4" |
ECO-DIP HV-0045 | 18 | 45 | DN 50 | 2" | 432 | 210 | 250 | 250 | 12,5 | 1/4" | |
DIP-2 | ECO-DIP HV-0075 | 30 | 75 | DN 65 | 2 1/2" | 512 | 255 | 300 | 300 | 12,5 | 1/2" |
ECO-DIP HV-0090 | 36 | 90 | DN 80 | 3" | 512 | 255 | 300 | 300 | 12,5 | 1/2" | |
ECO-DIP HV-0120 | 48 | 120 | DN 100 | 4" | 512 | 255 | 300 | 300 | 12,5 | 1/2" | |
DIP-3 | ECO-DIP HV-0200 | 80 | 200 | DN 125 | 5" | 592 | 300 | 350 | 350 | 12,5 | 3/4" |
ECO-DIP HV-0300 | 120 | 300 | DN 150 | 6" | 592 | 300 | 350 | 350 | 12,5 | 3/4" | |
DIP-4 | ECO-DIP HV-0500 | 200 | 500 | DN 200 | 8" | 672 | 345 | 400 | 400 | 12,5 | 1 1/4" |
ECO-DIP HV-0800 | 320 | 800 | DN 250 | 10" | 672 | 345 | 400 | 400 | 12,5 | 1 1/4" | |
DIP-5 | ECO-DIP HV-1100 | 440 | 1100 | DN 250 | 10" | 752 | 390 | 450 | 450 | 12,5 | 2" |
ECO-DIP HV-1600 | 640 | 1600 | DN 300 | 12" | 752 | 390 | 450 | 450 | 12,5 | 2" |
